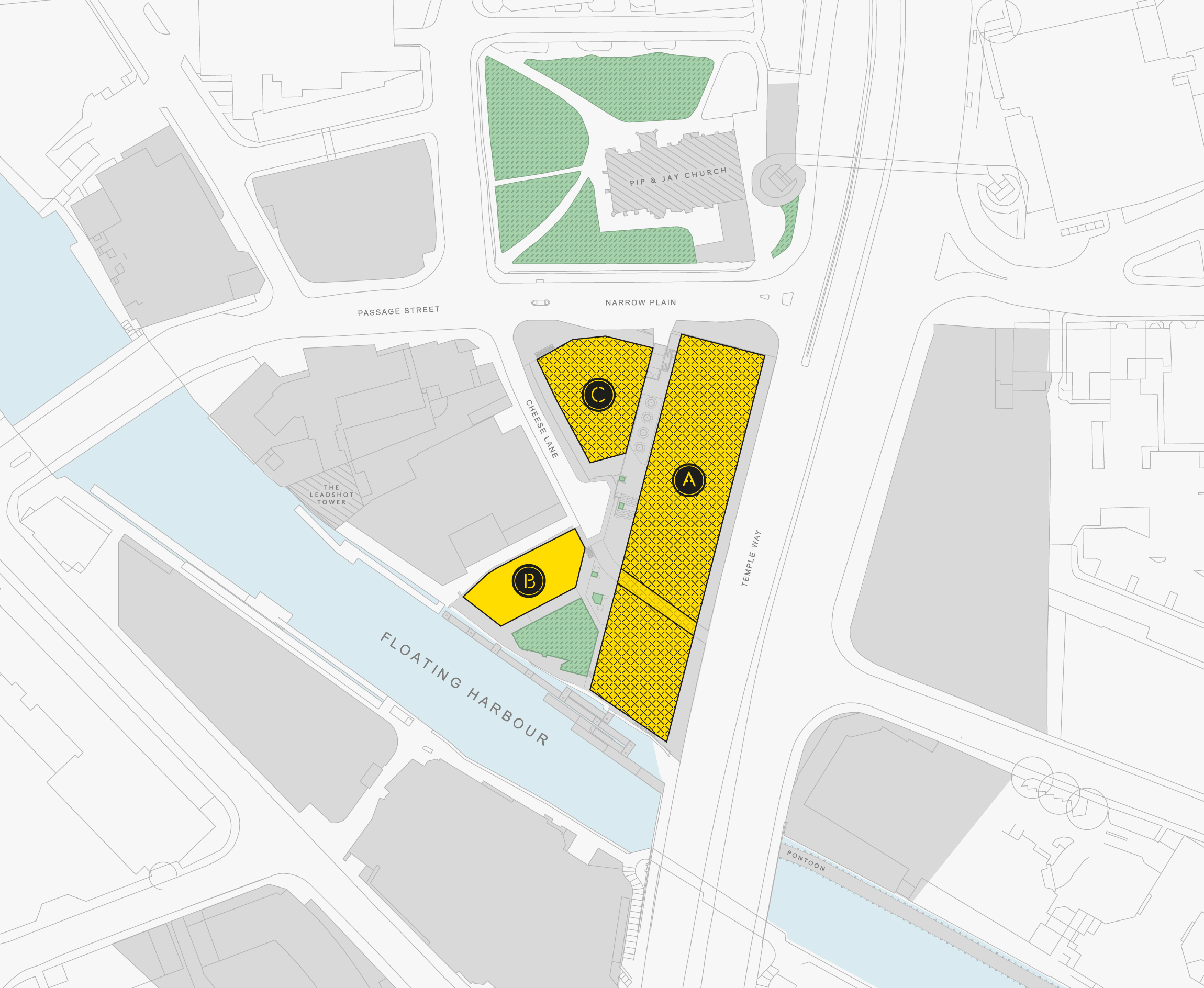

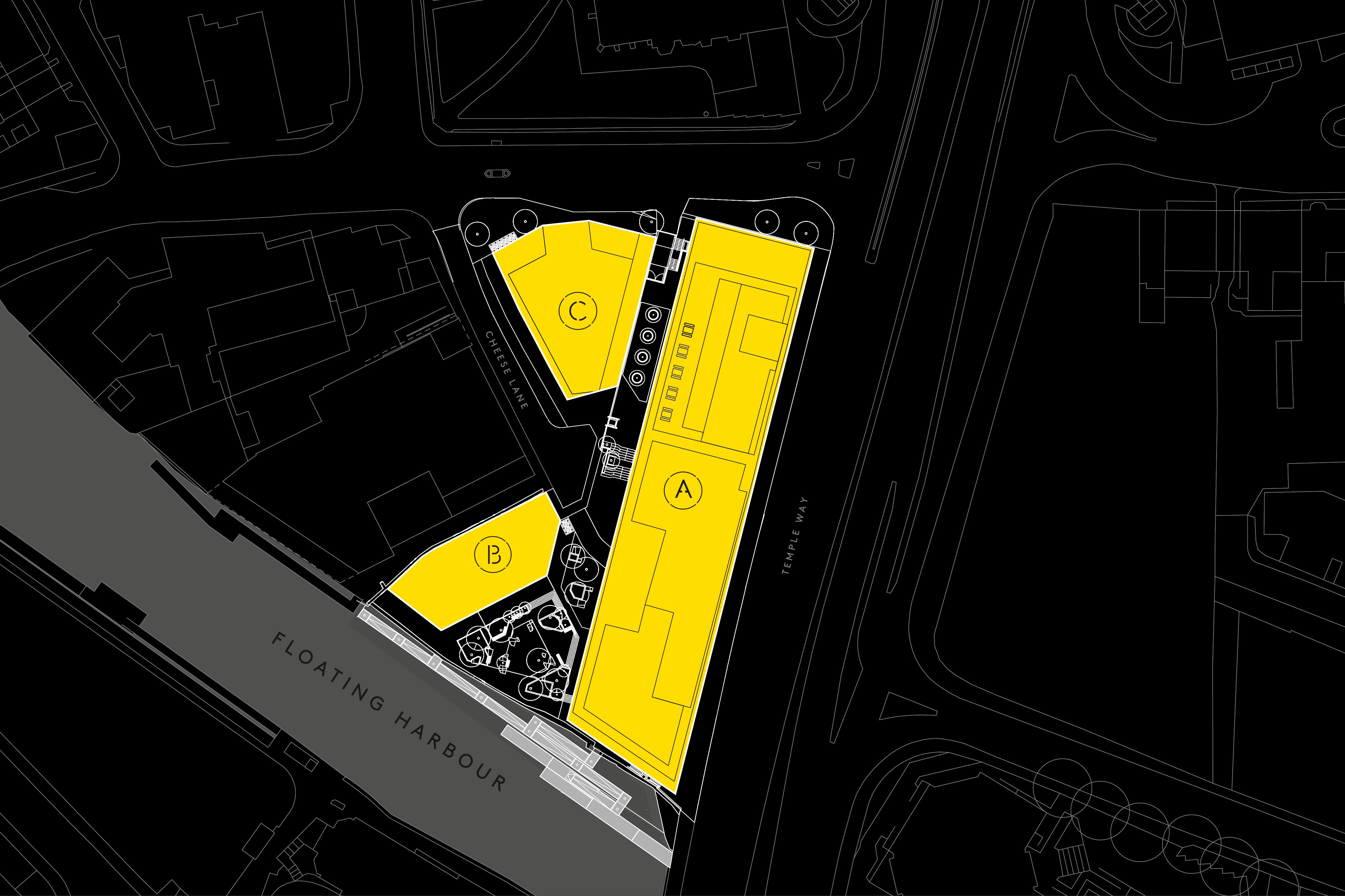

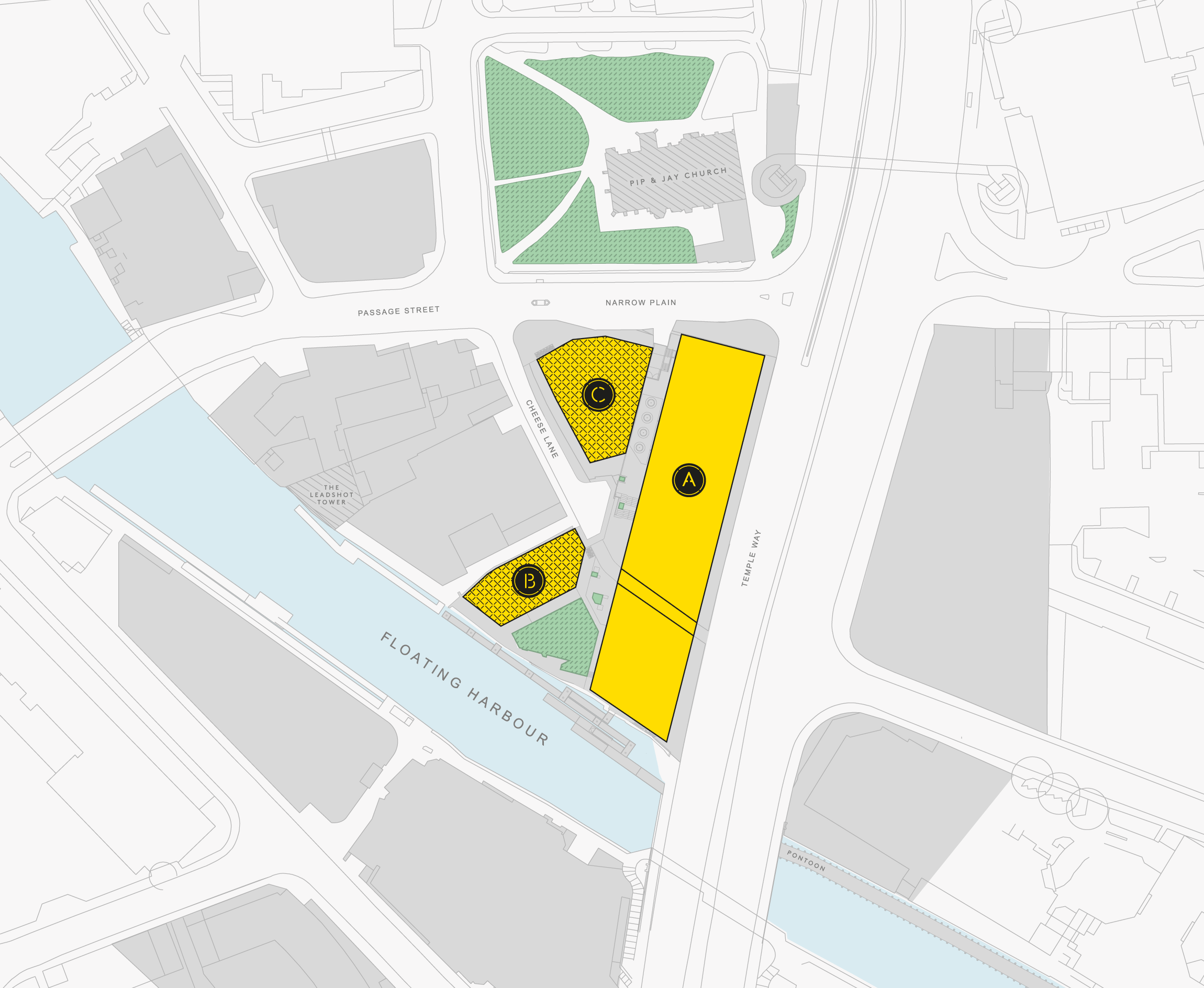

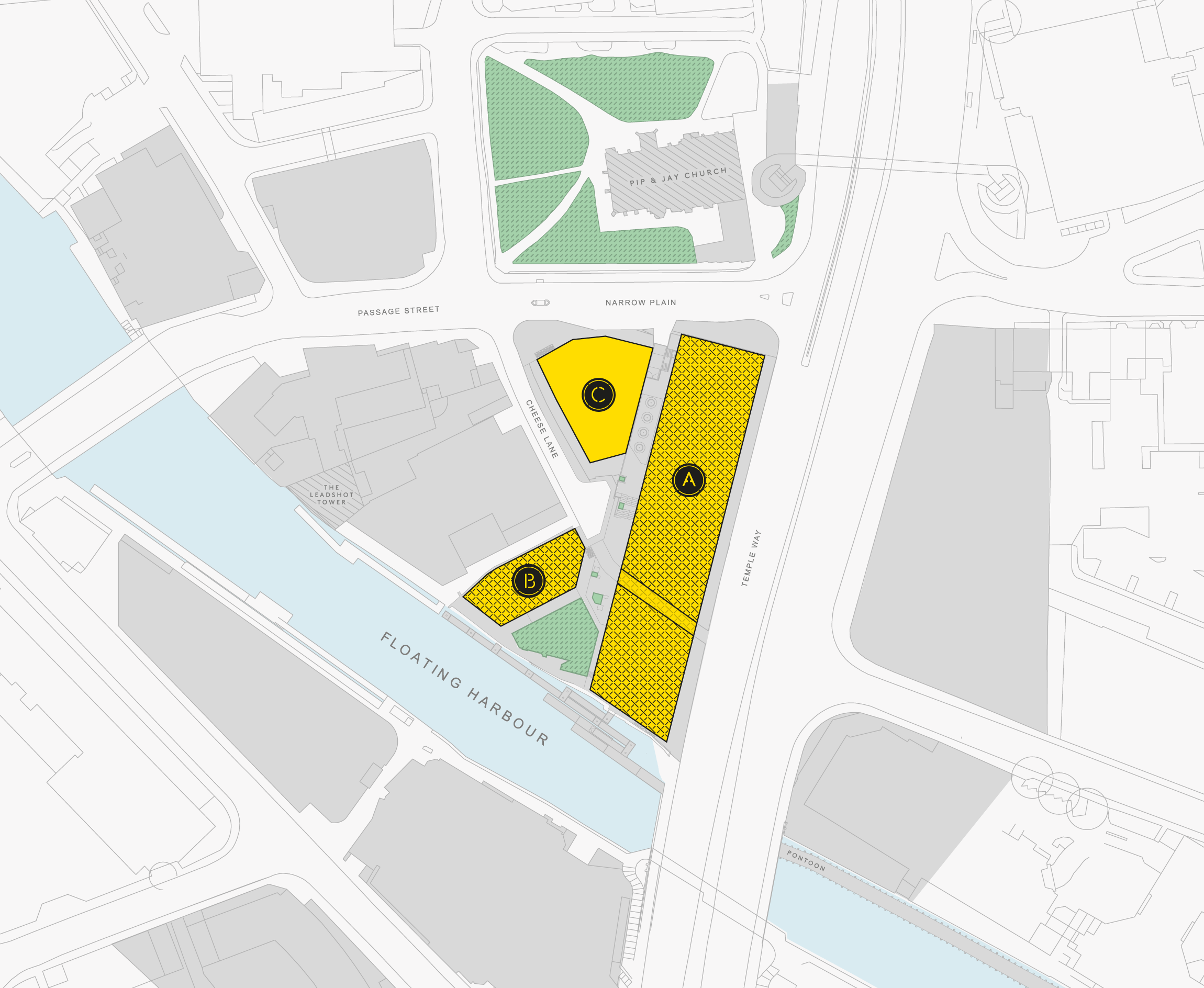

Masterplan Image Assembly Bristol

Schedule
of Areas

Building A Areas

Let to BT

Building B Areas
close

Schedule
of Areas

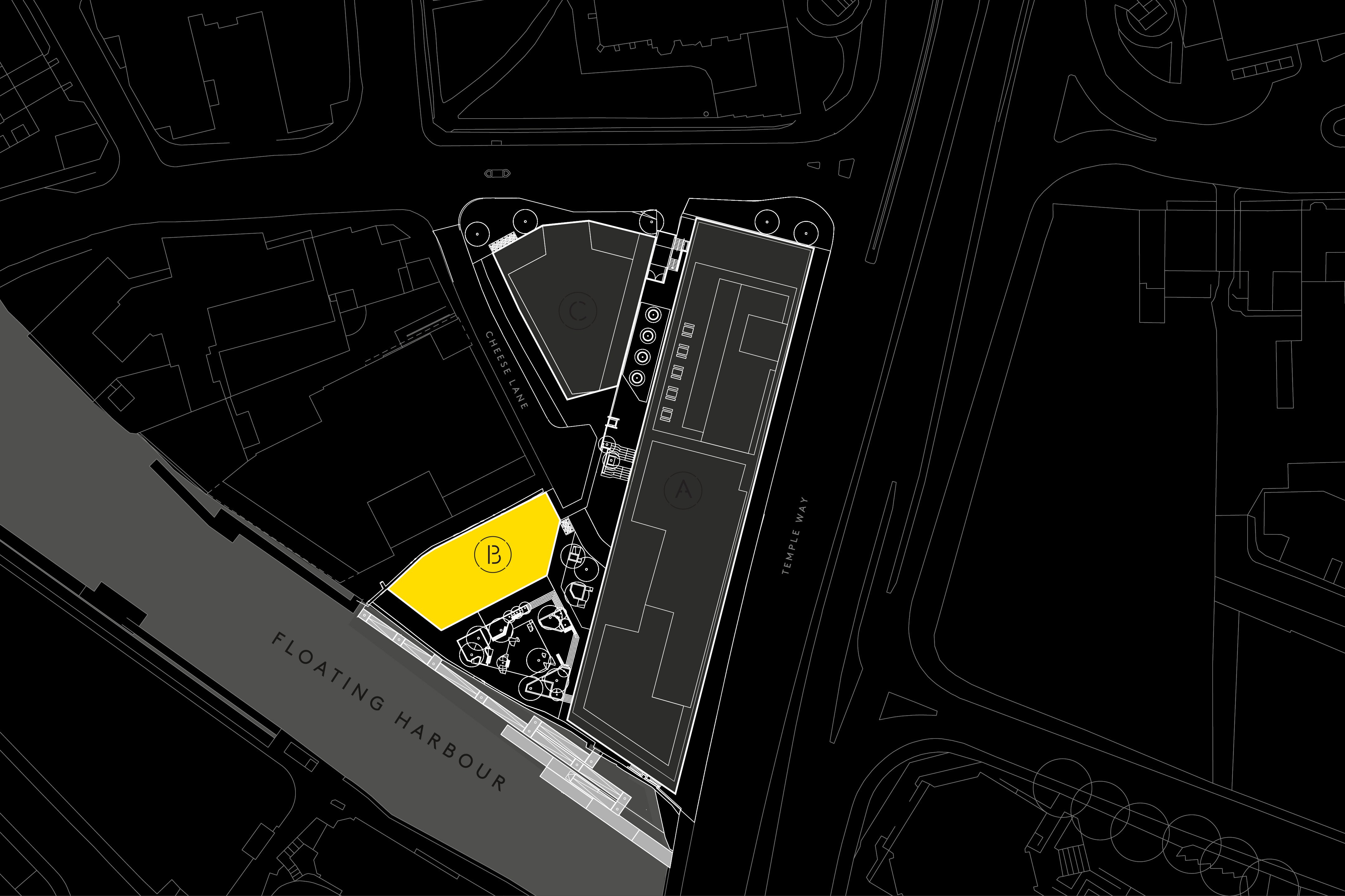

Building B areas

Proposed floor areas sq.ft sq.m

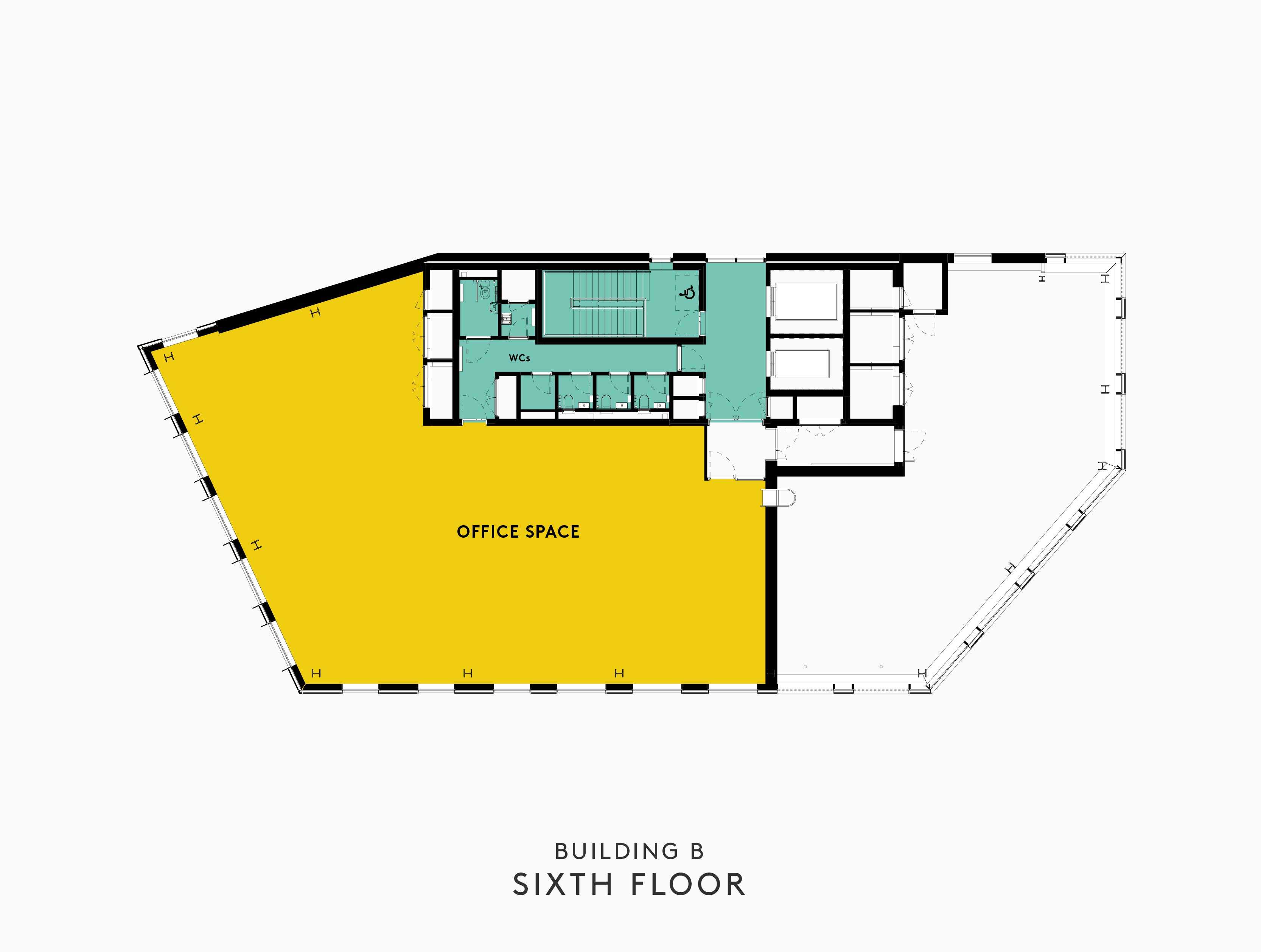

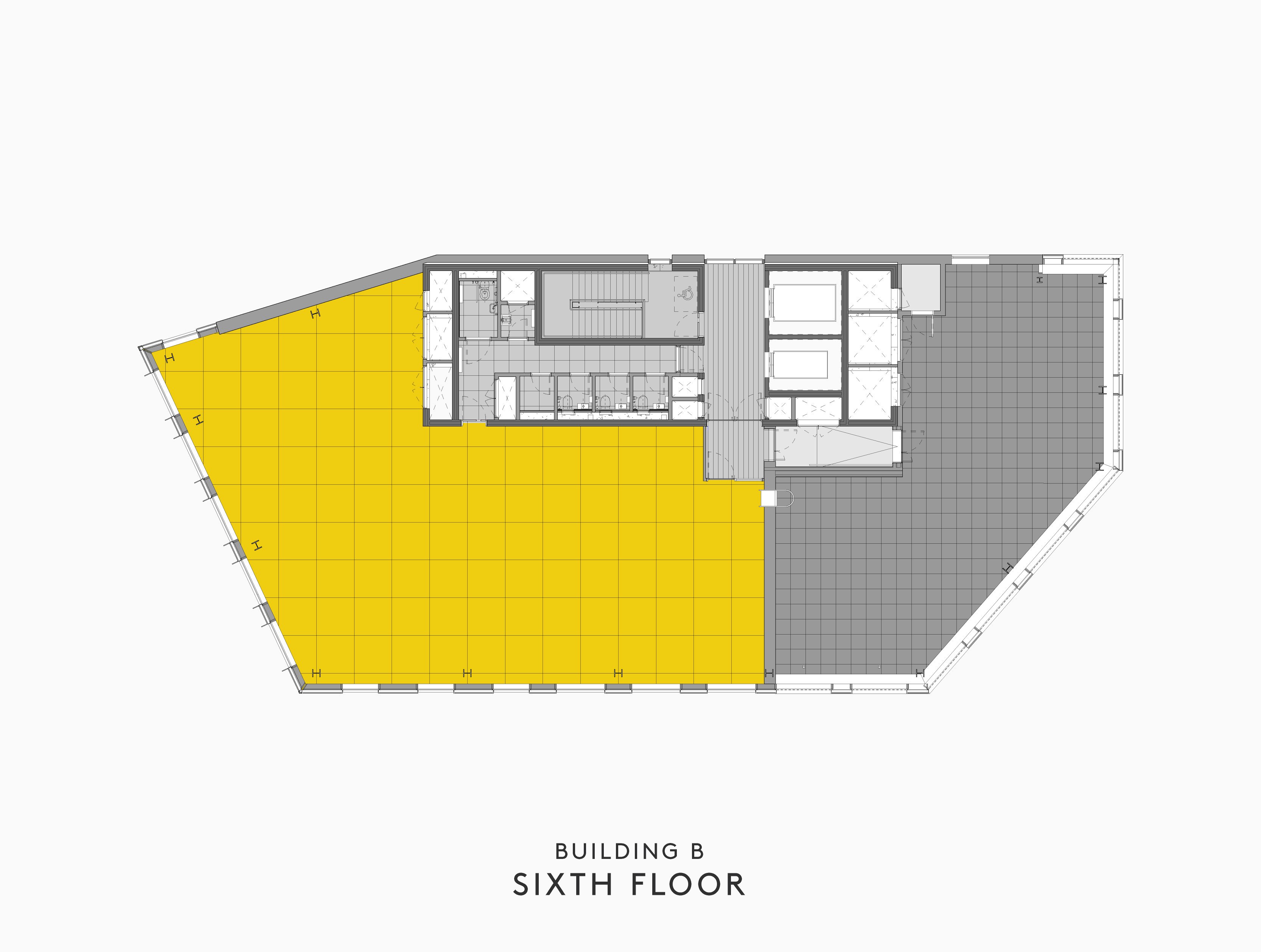

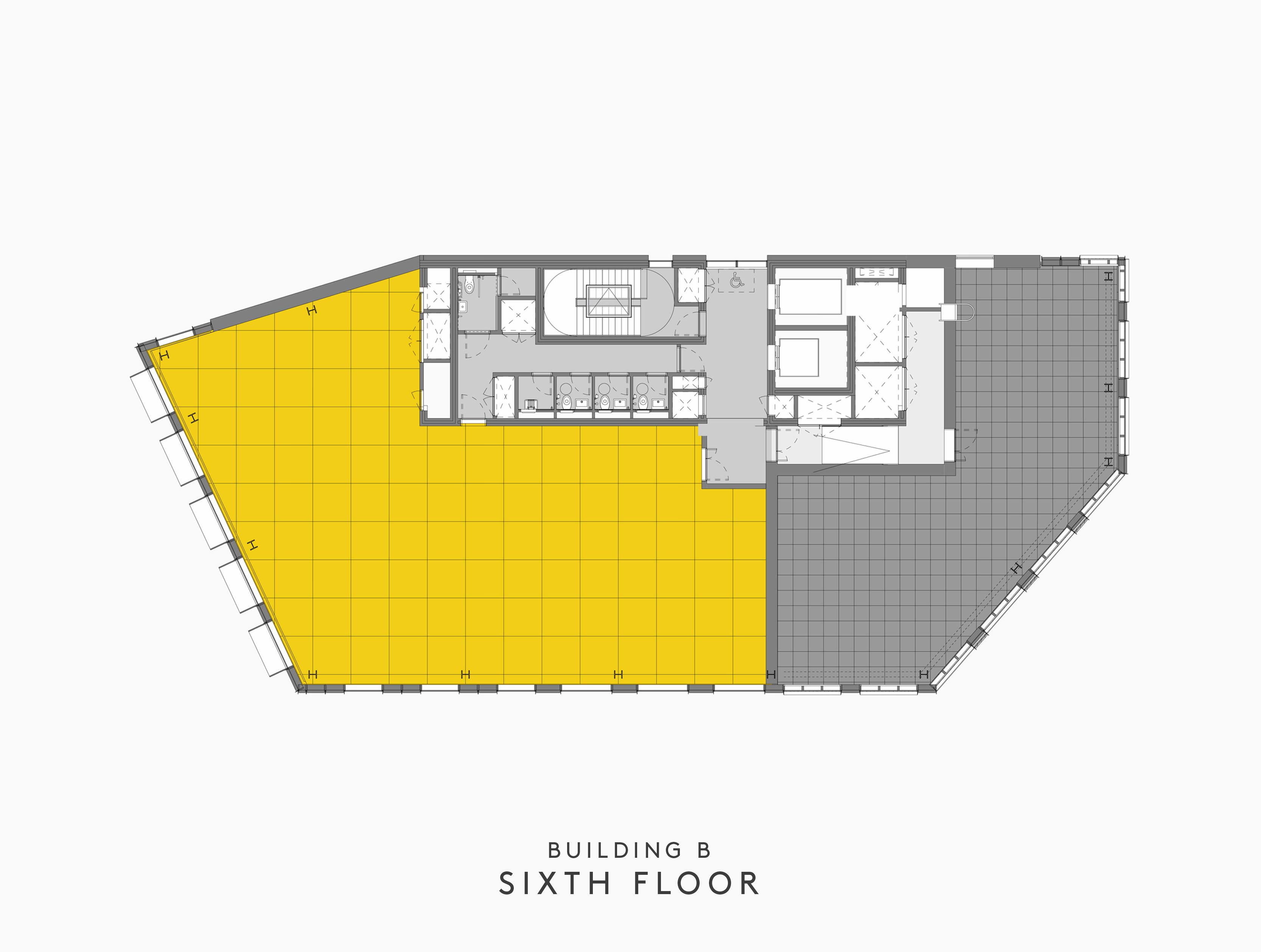

6th floor 2,673 248

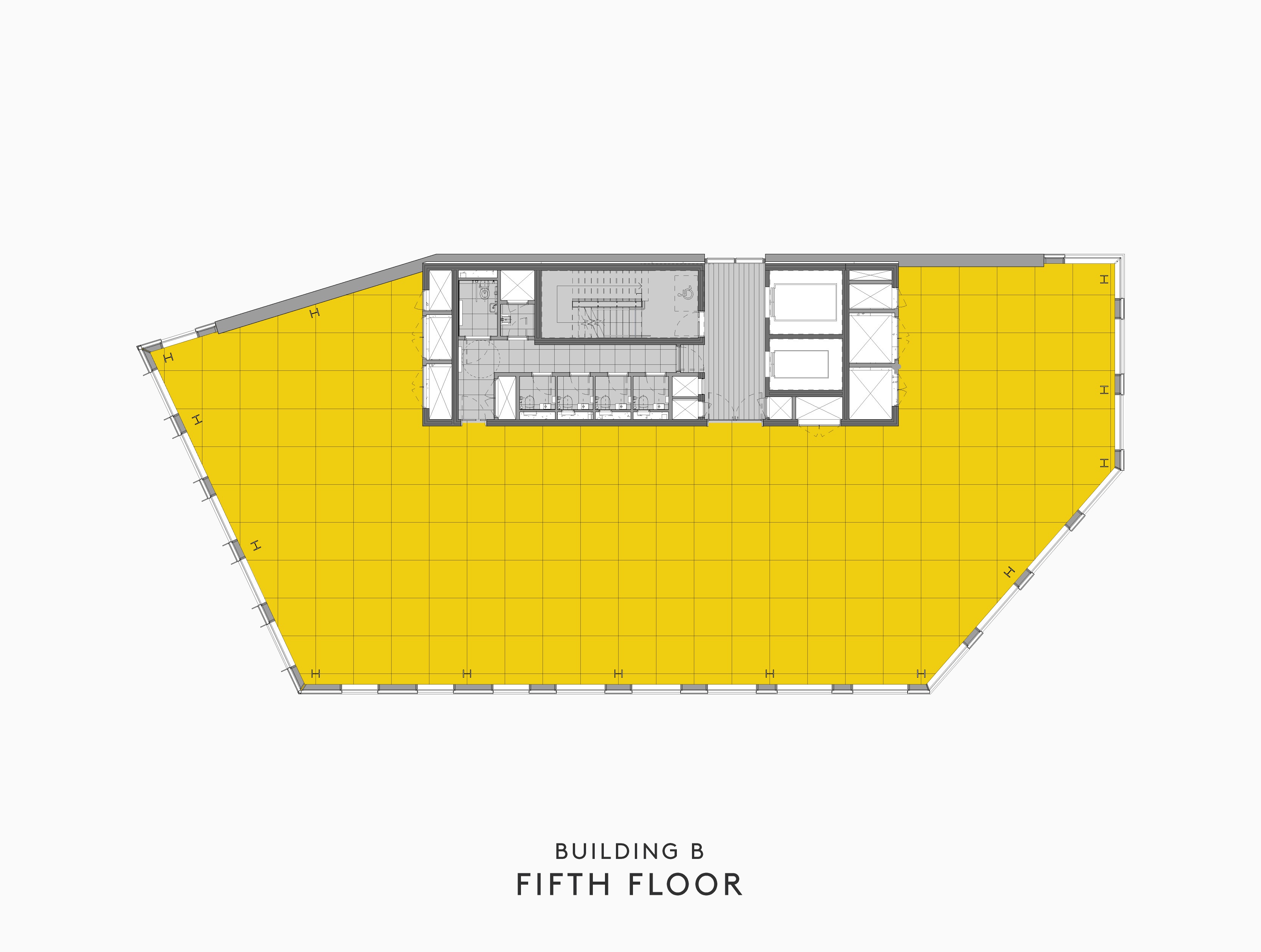

5th floor 4,479 416
4th floor 4,479 416

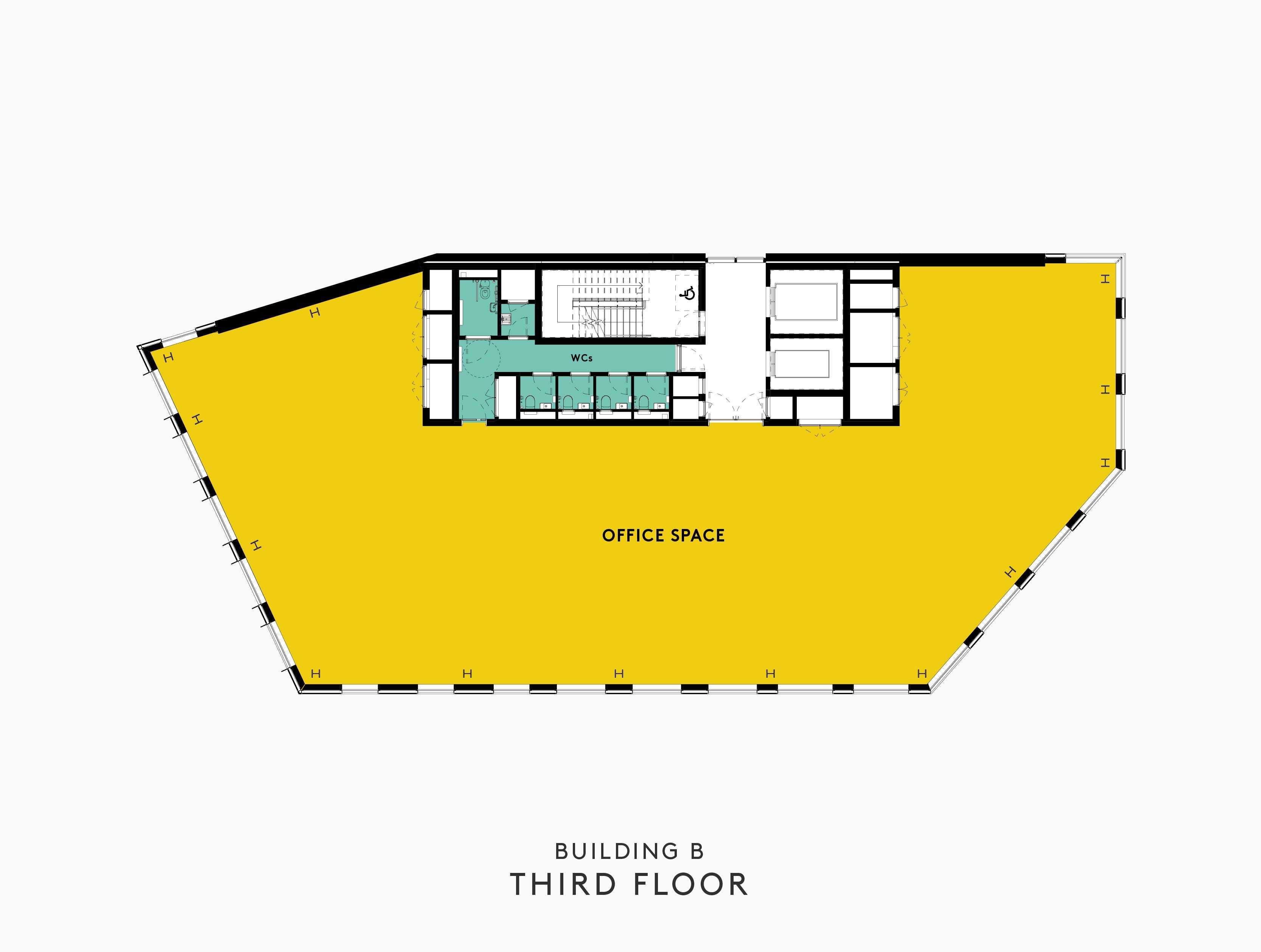

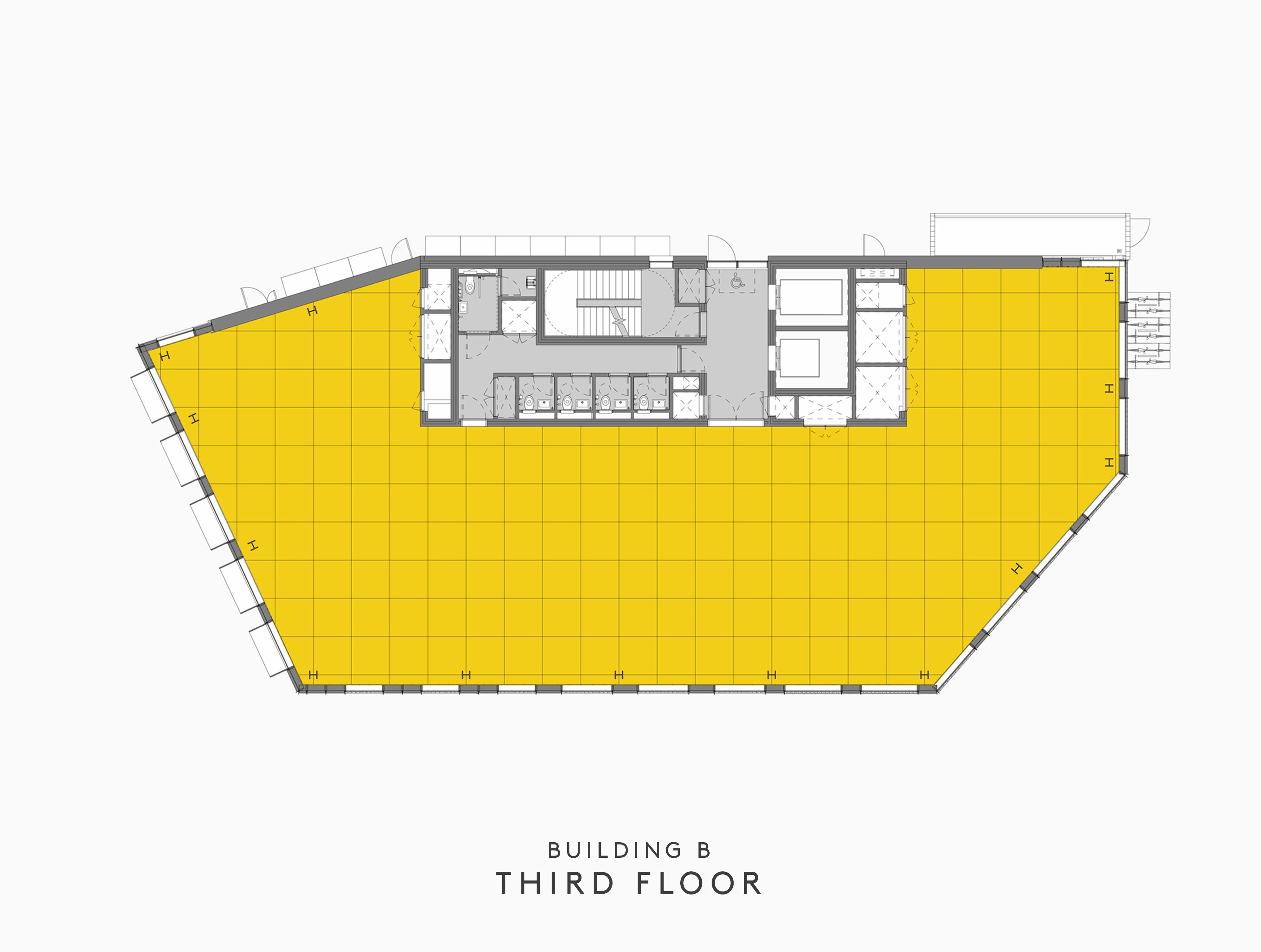

3rd floor 4,479 416

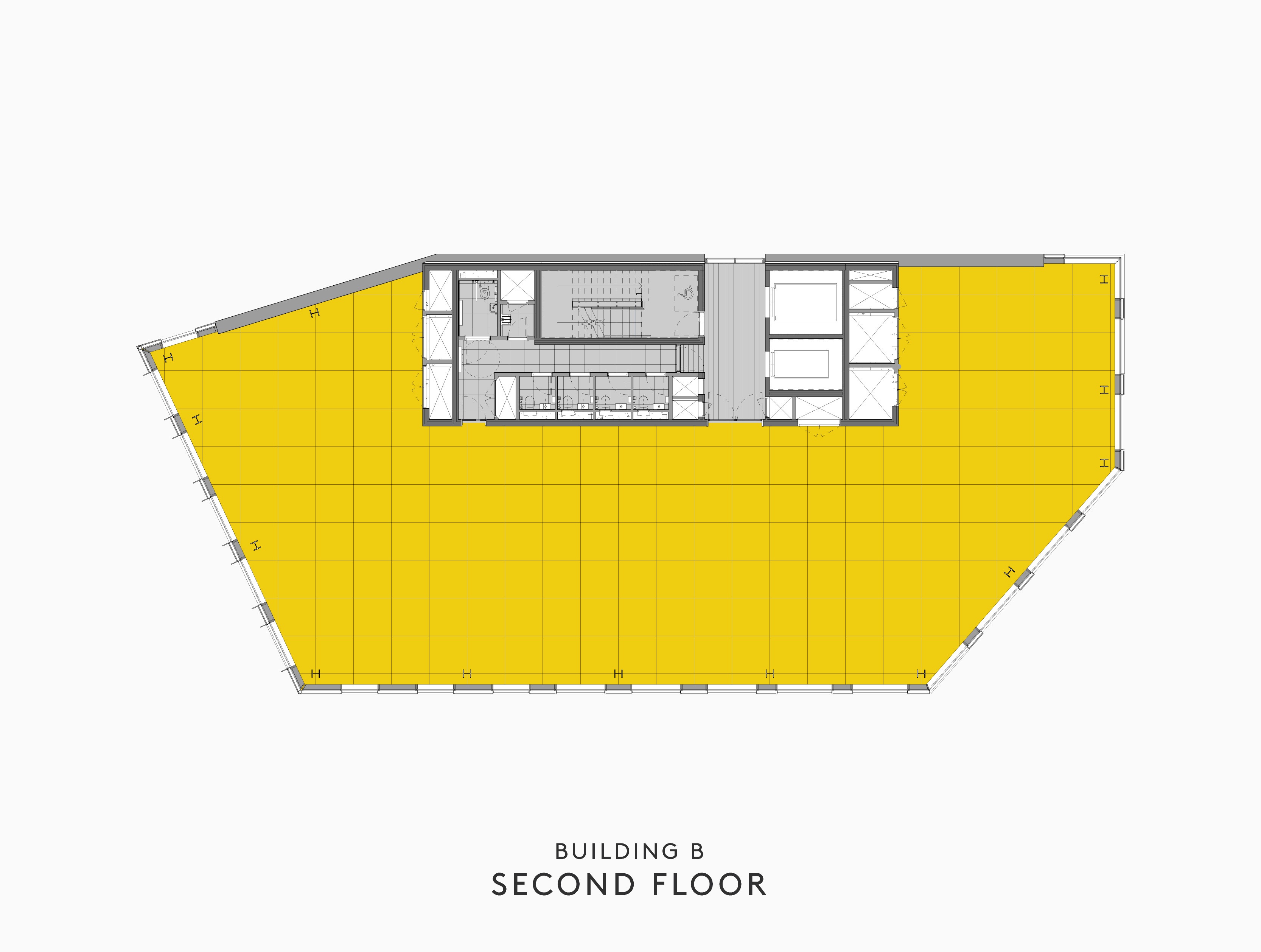

2nd floor 4,479 416

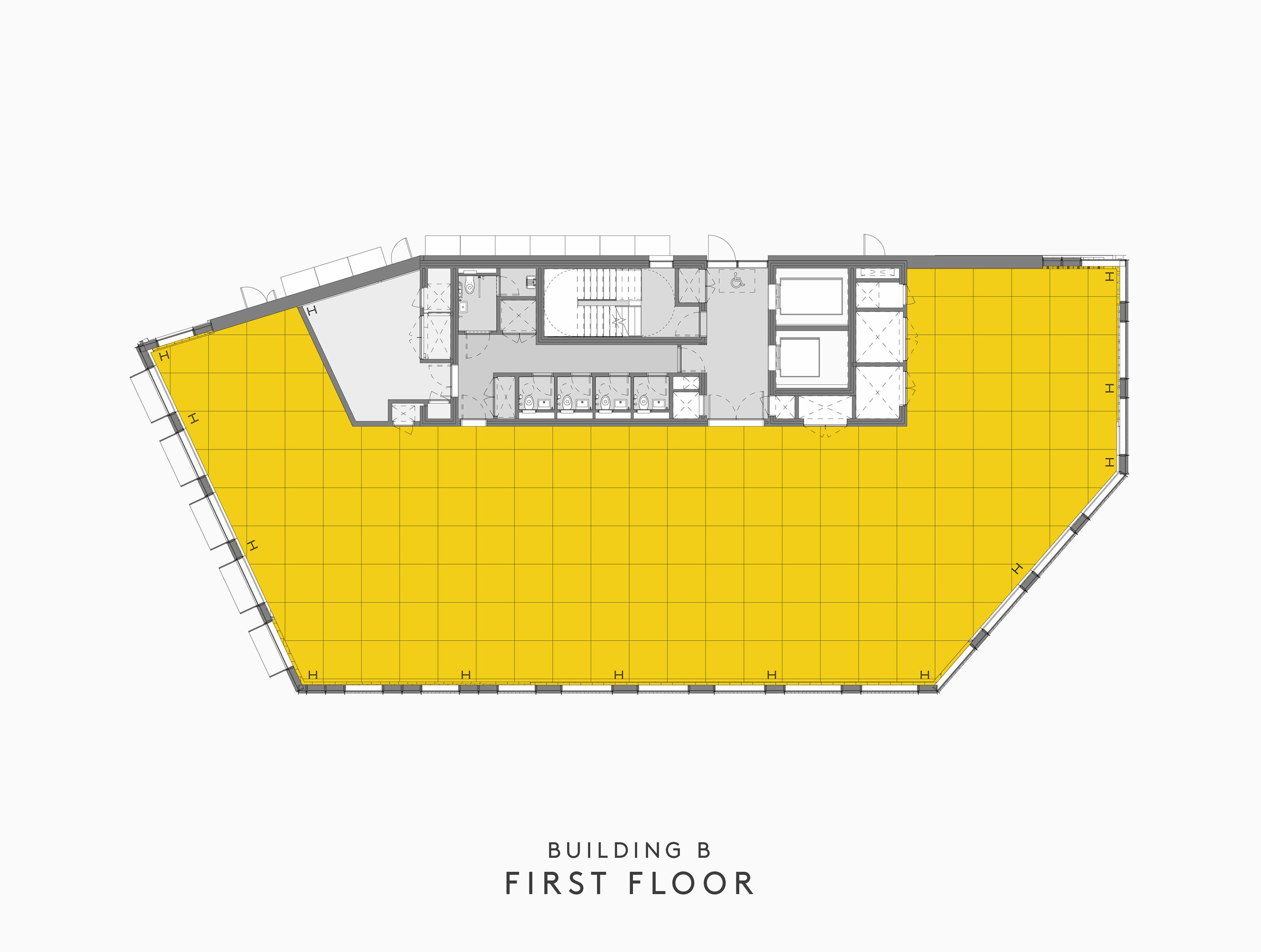

1st floor 4,255 395

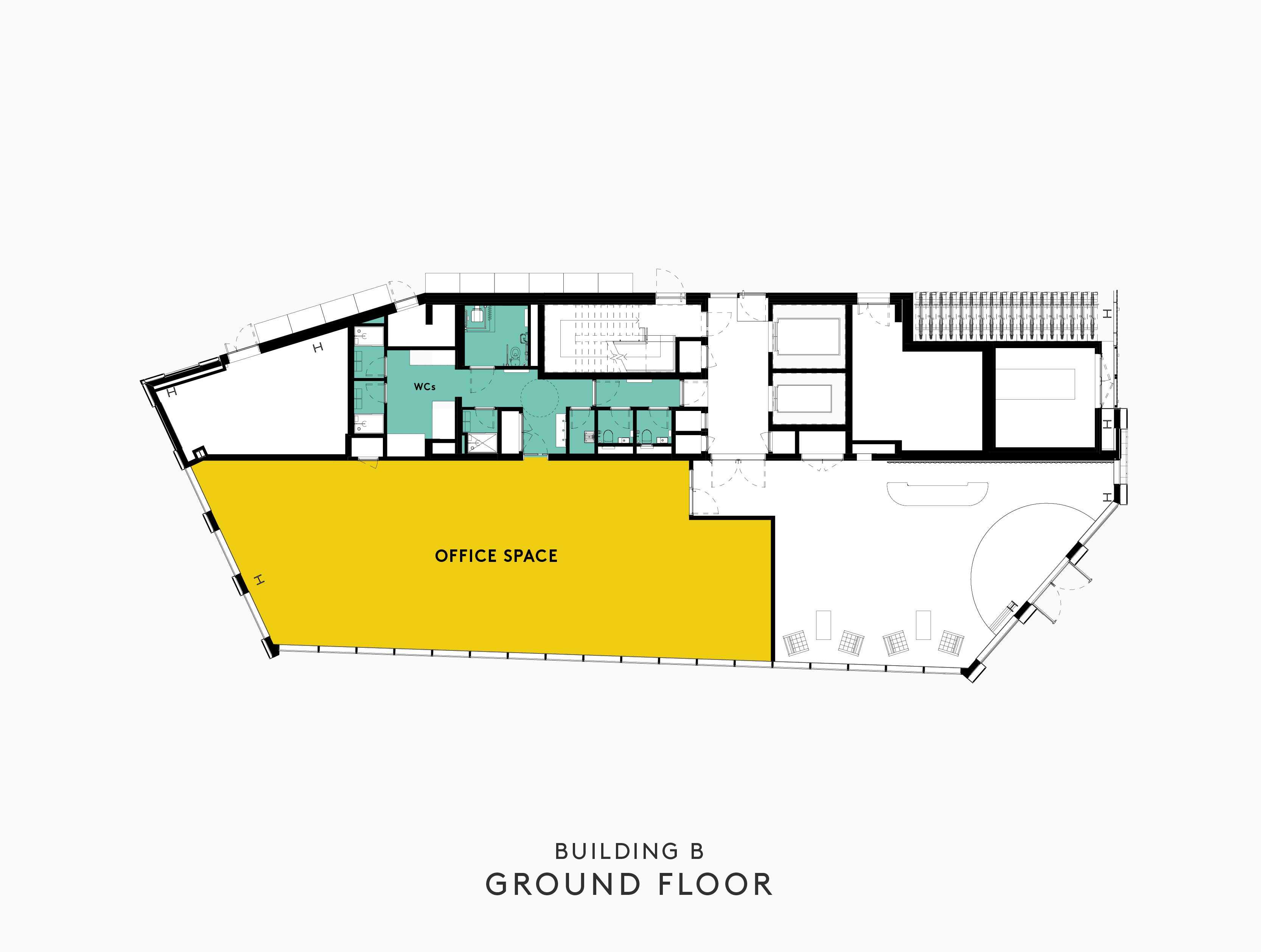

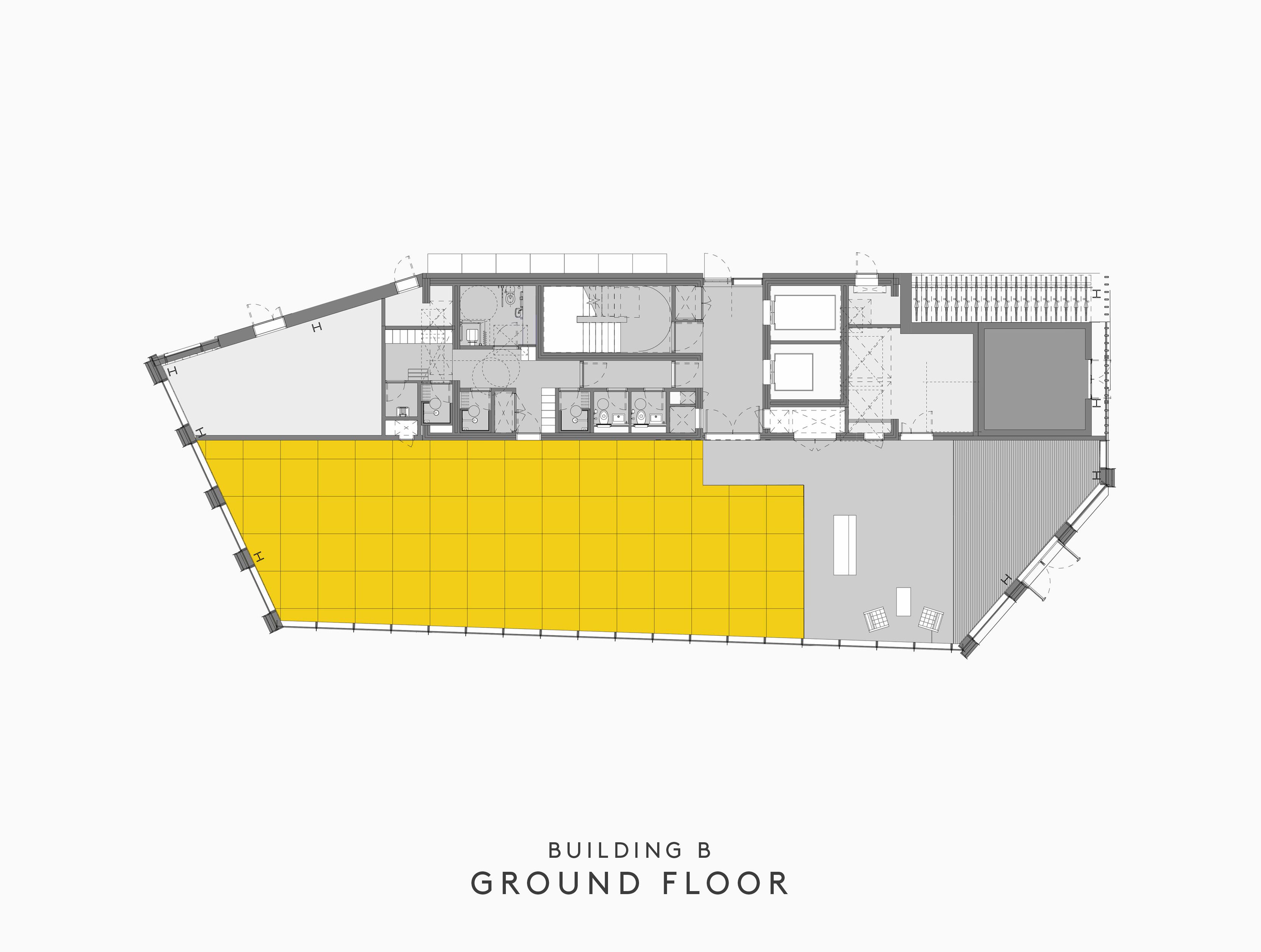

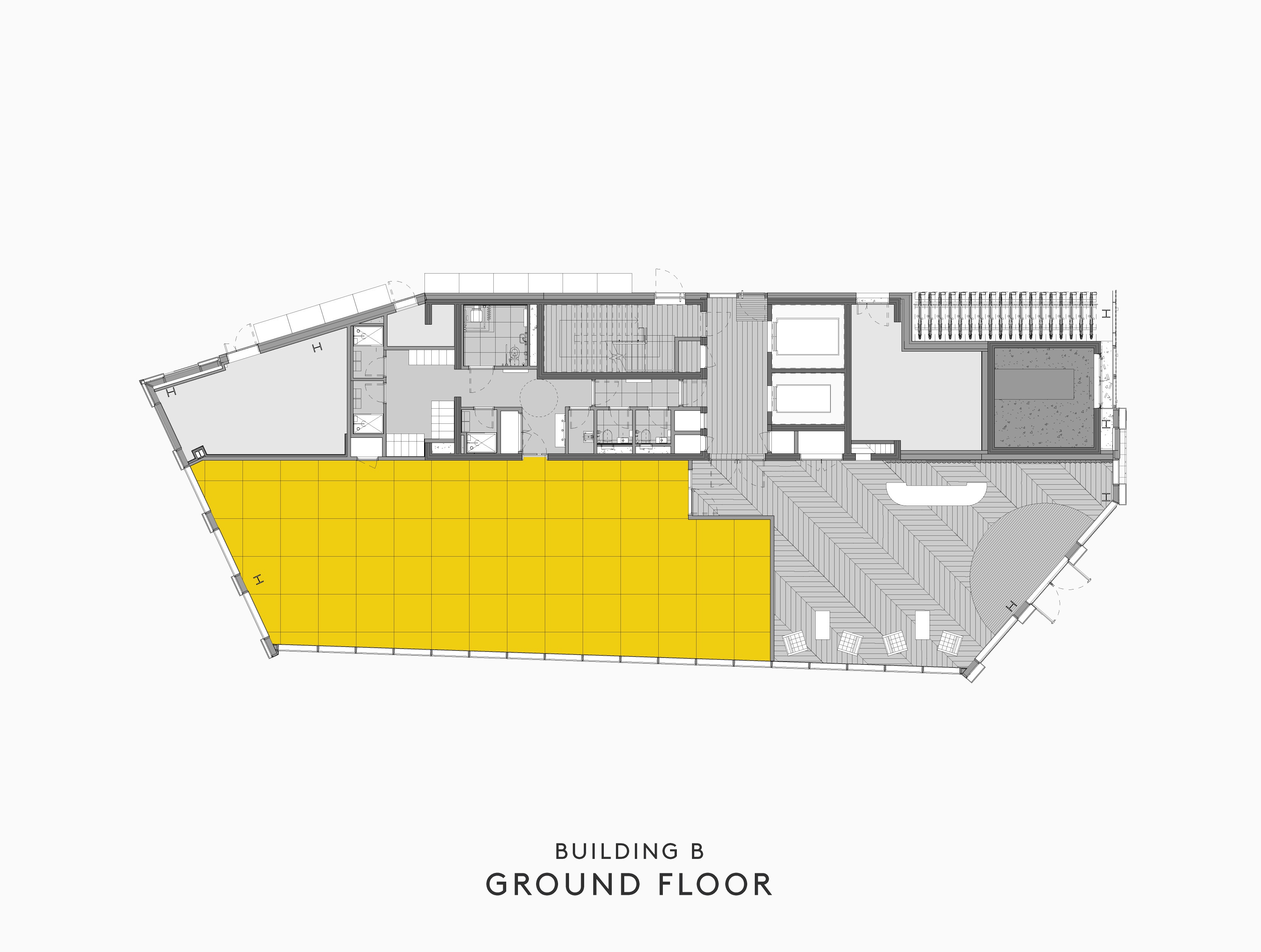

Ground floor 1,797 167

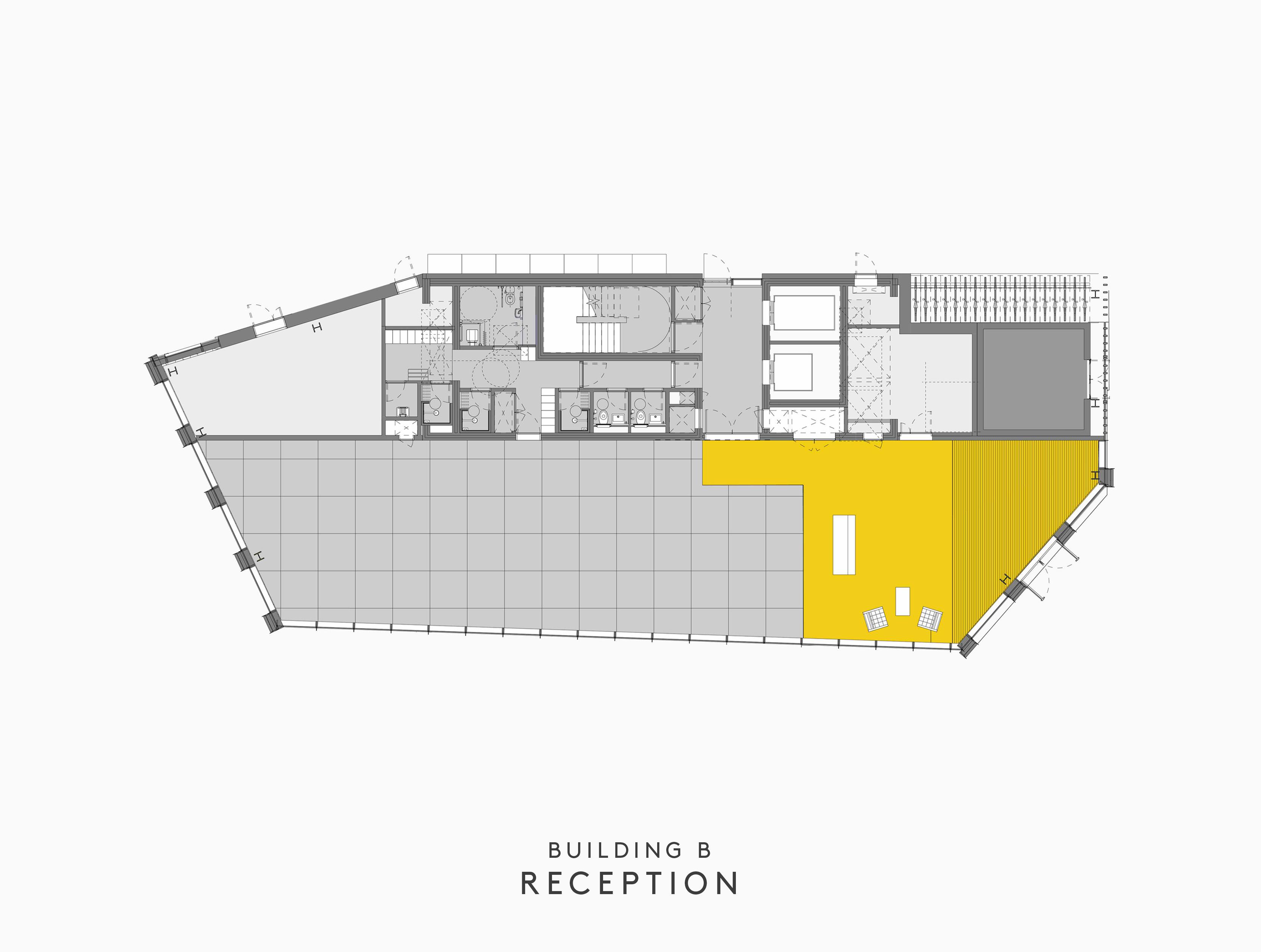

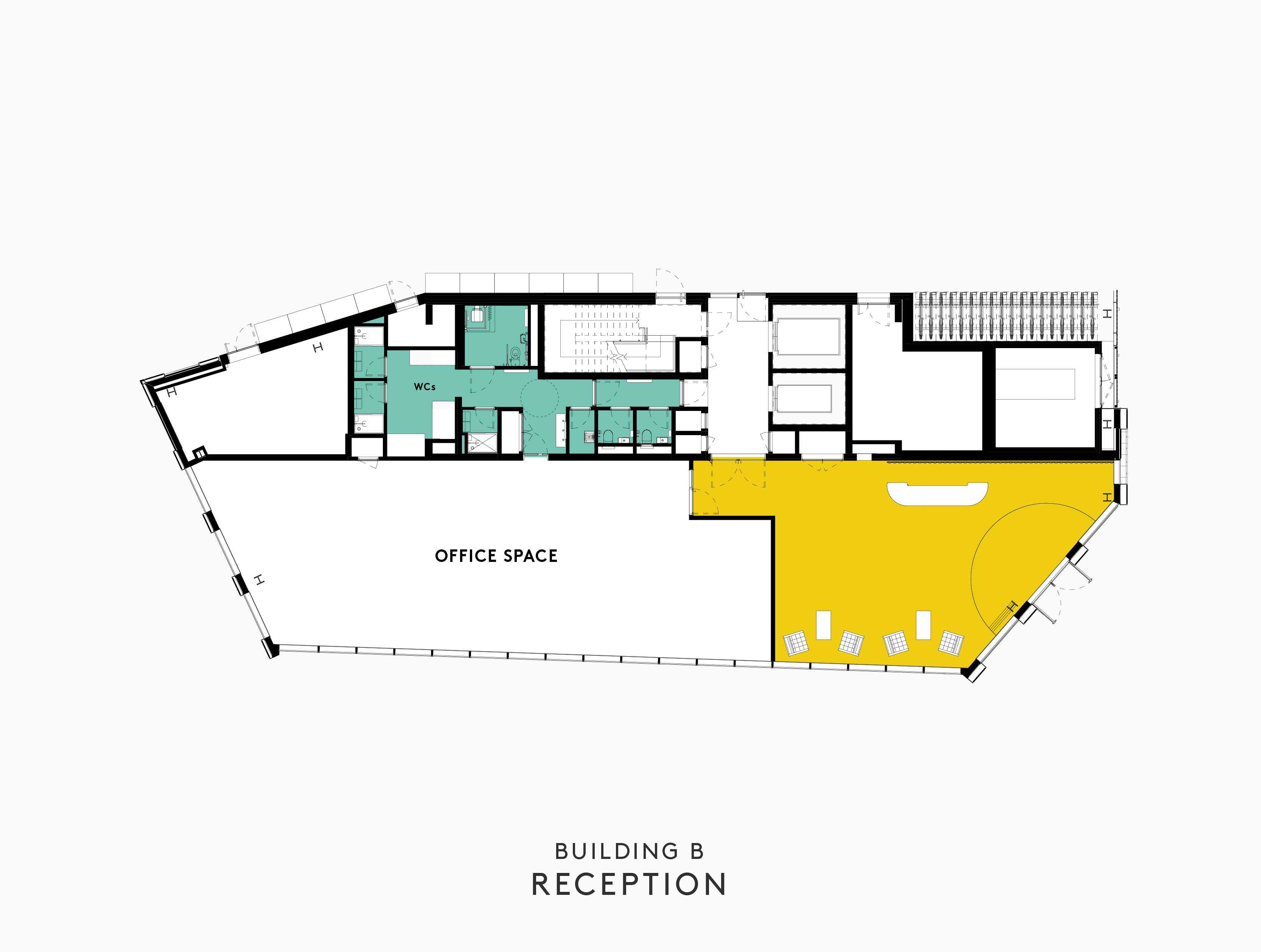

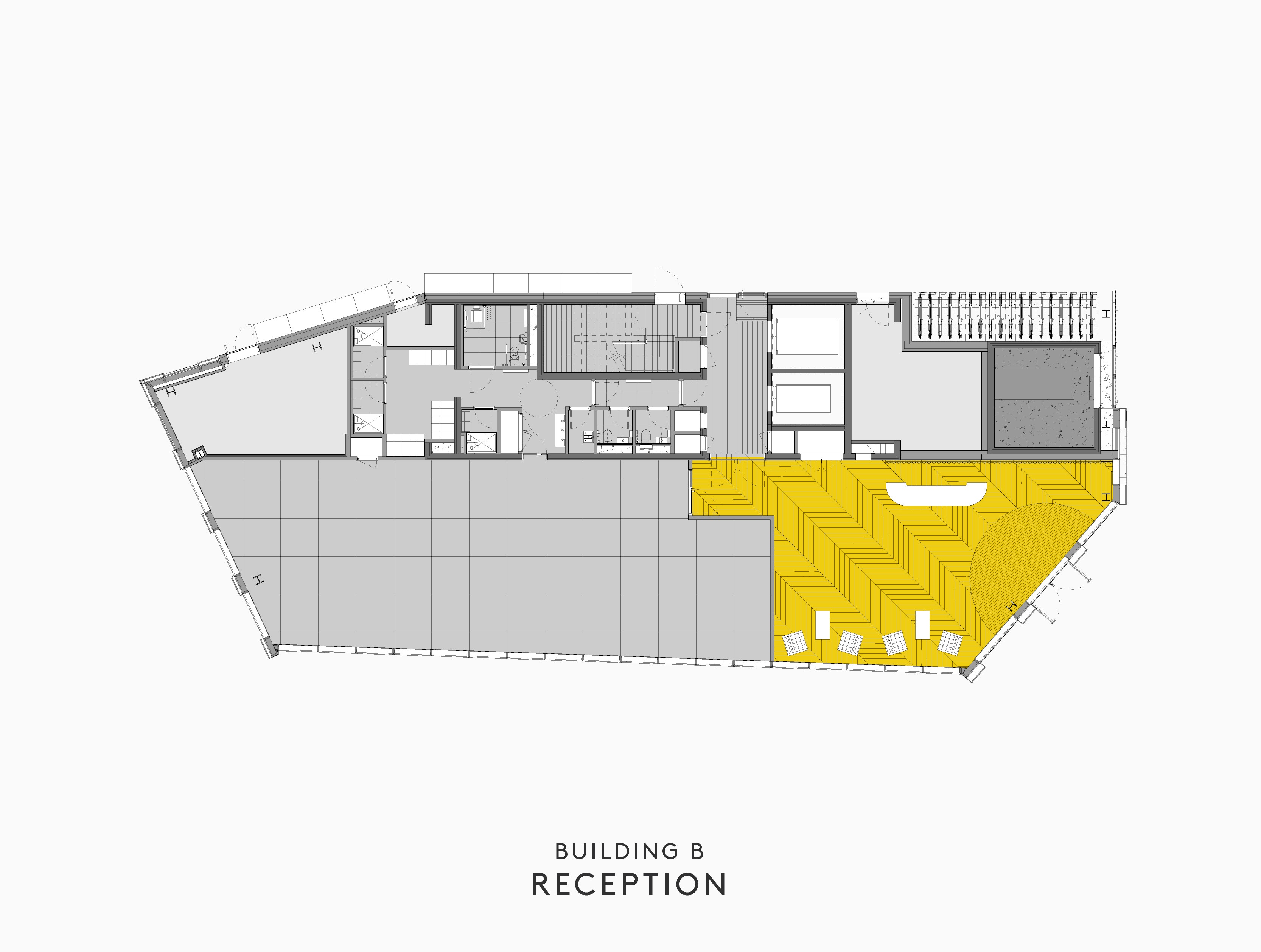

Reception 926 86
Total 27,567 2,560
Building C Areas
close

Schedule
of Areas

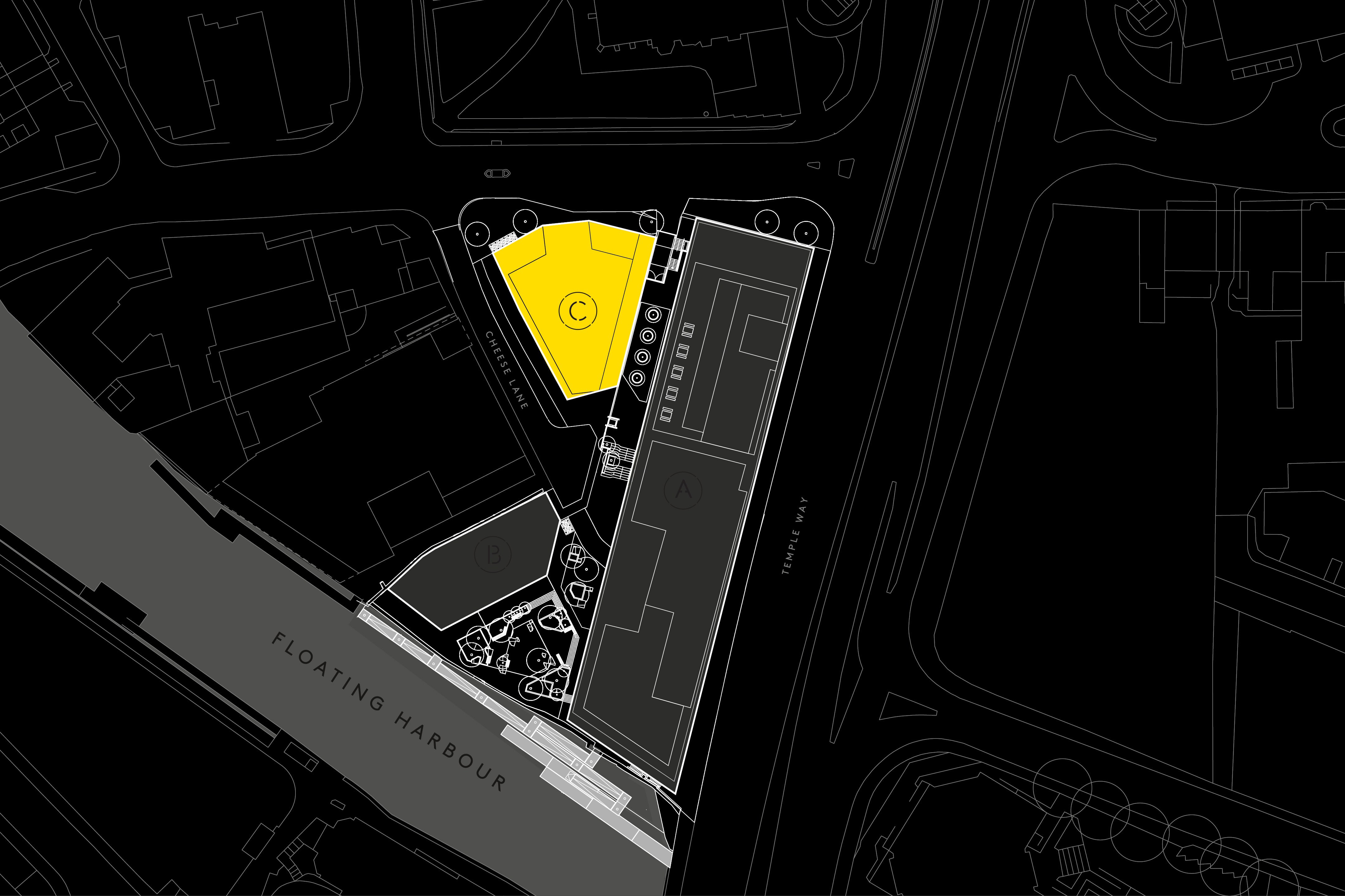

Building C areas

Proposed floor areas sq.ft sq.m Balcony/ terrace sq.ft

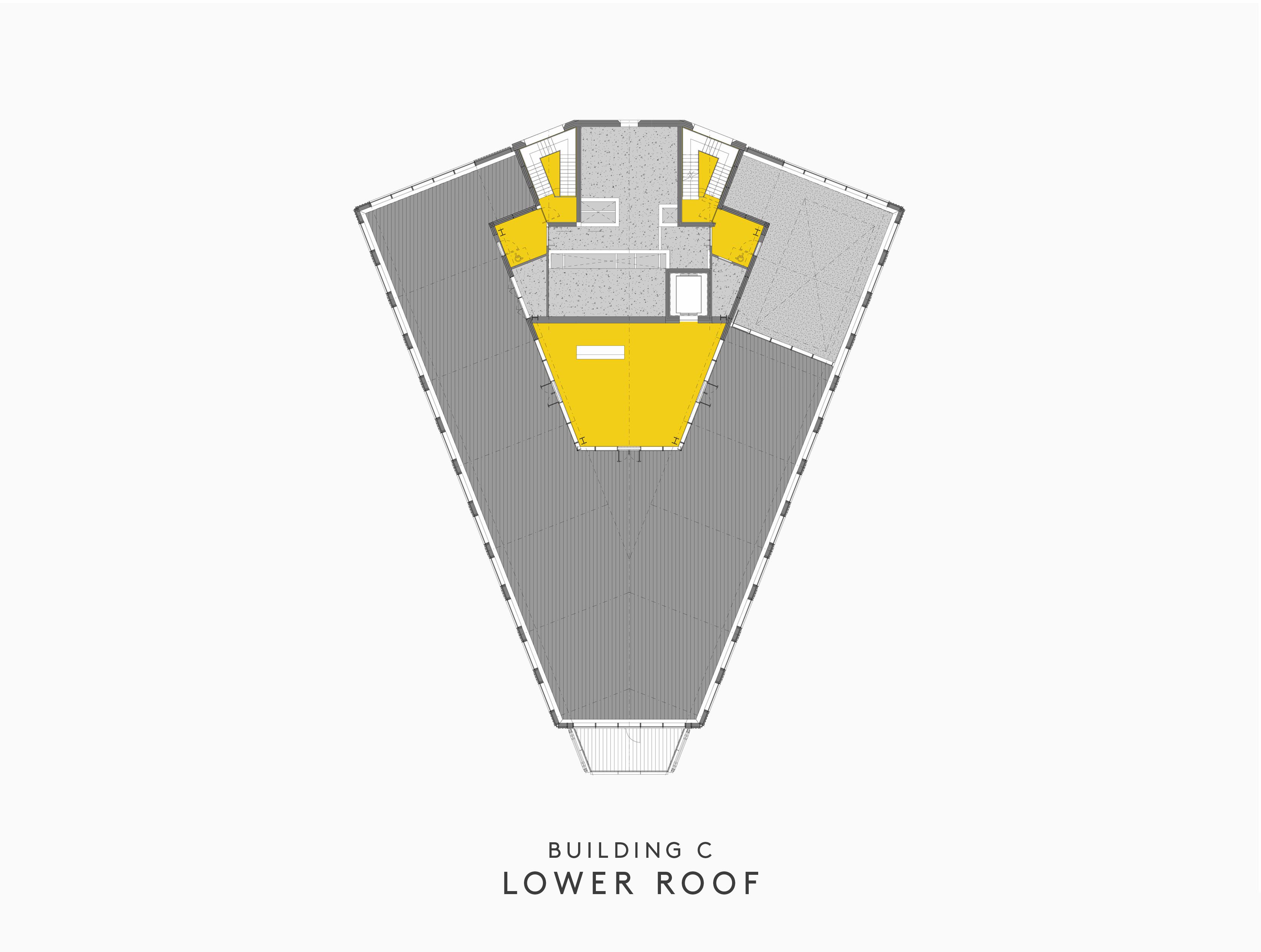

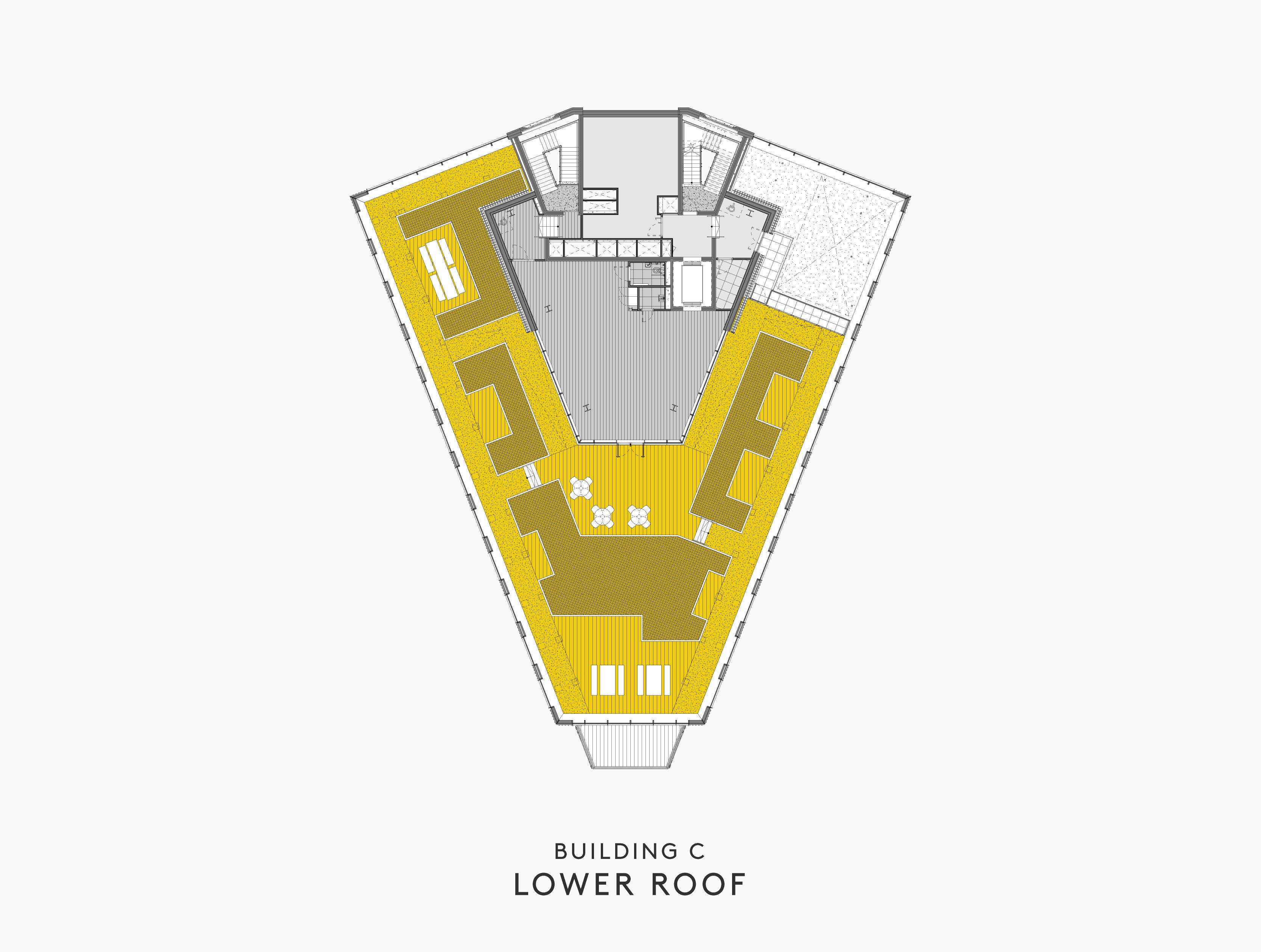

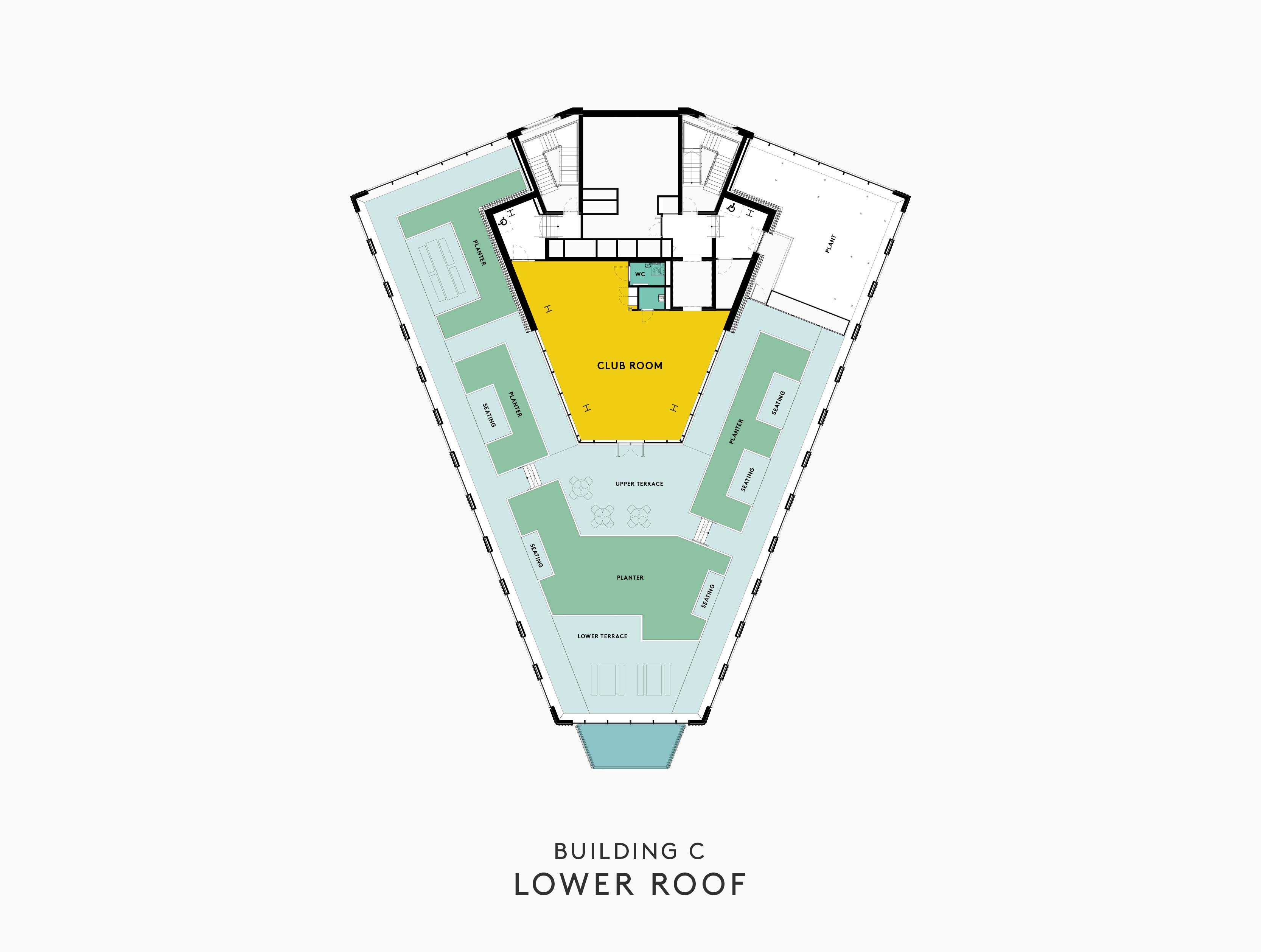

Lower roof - - 5,284

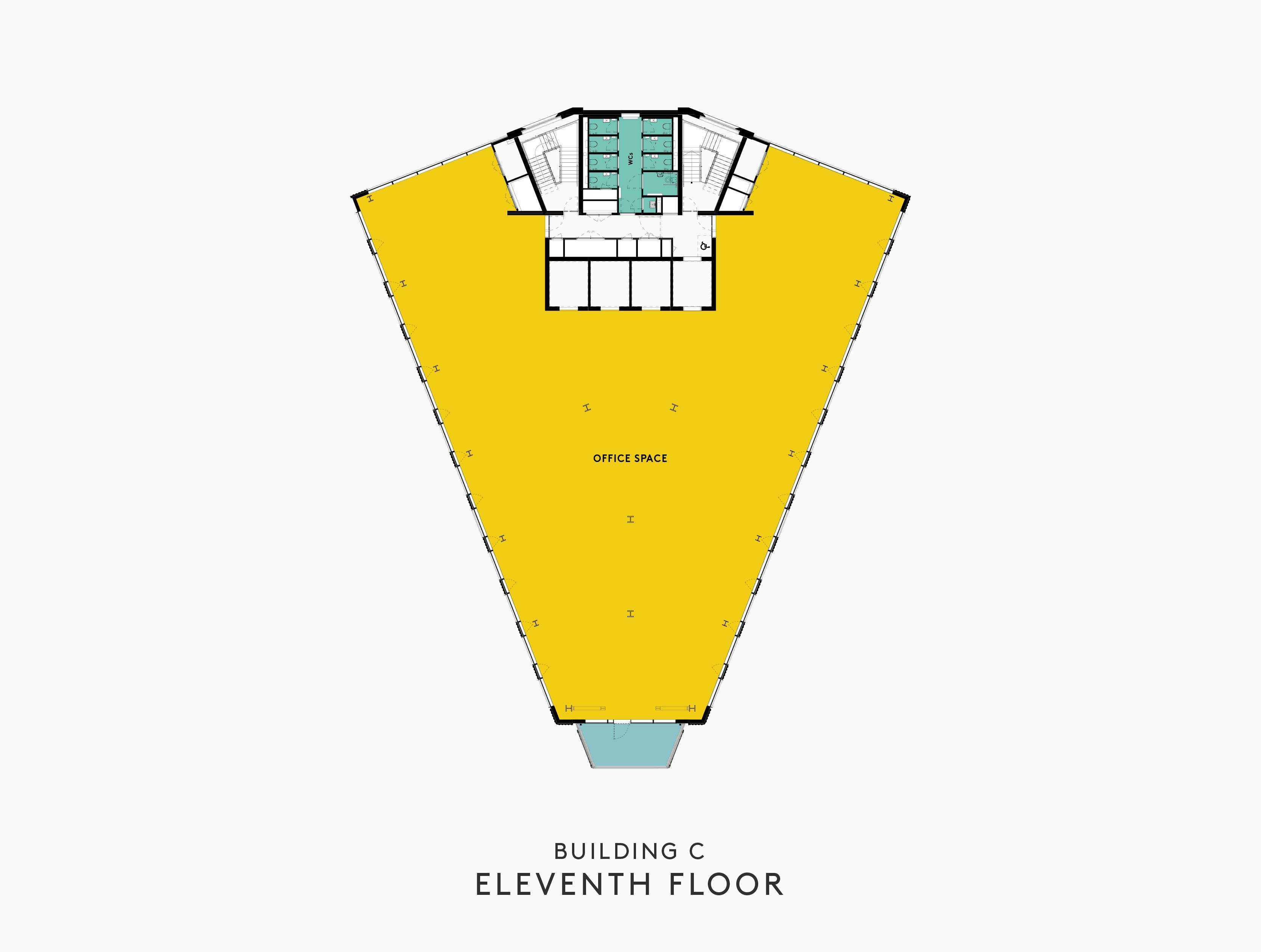

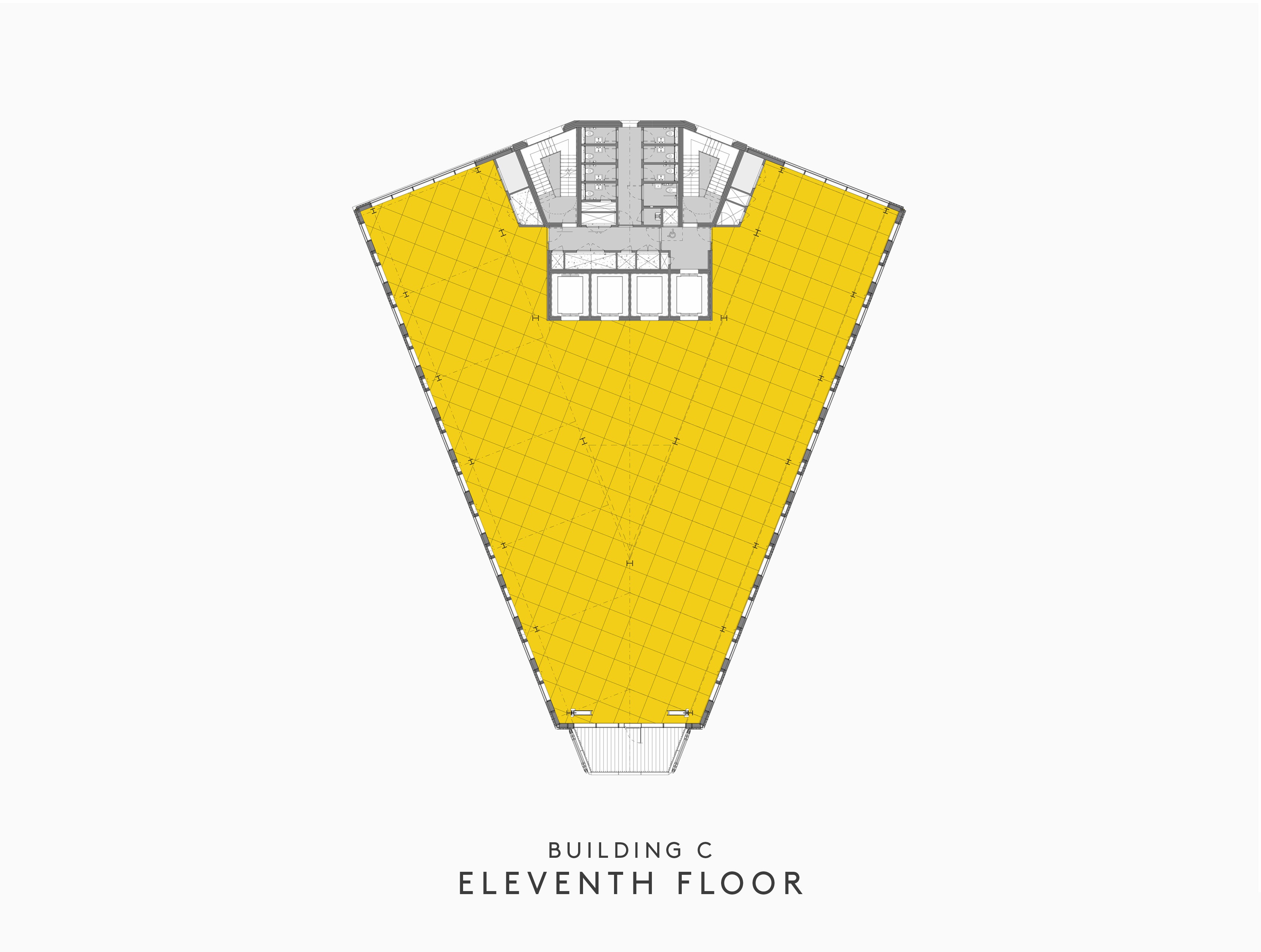

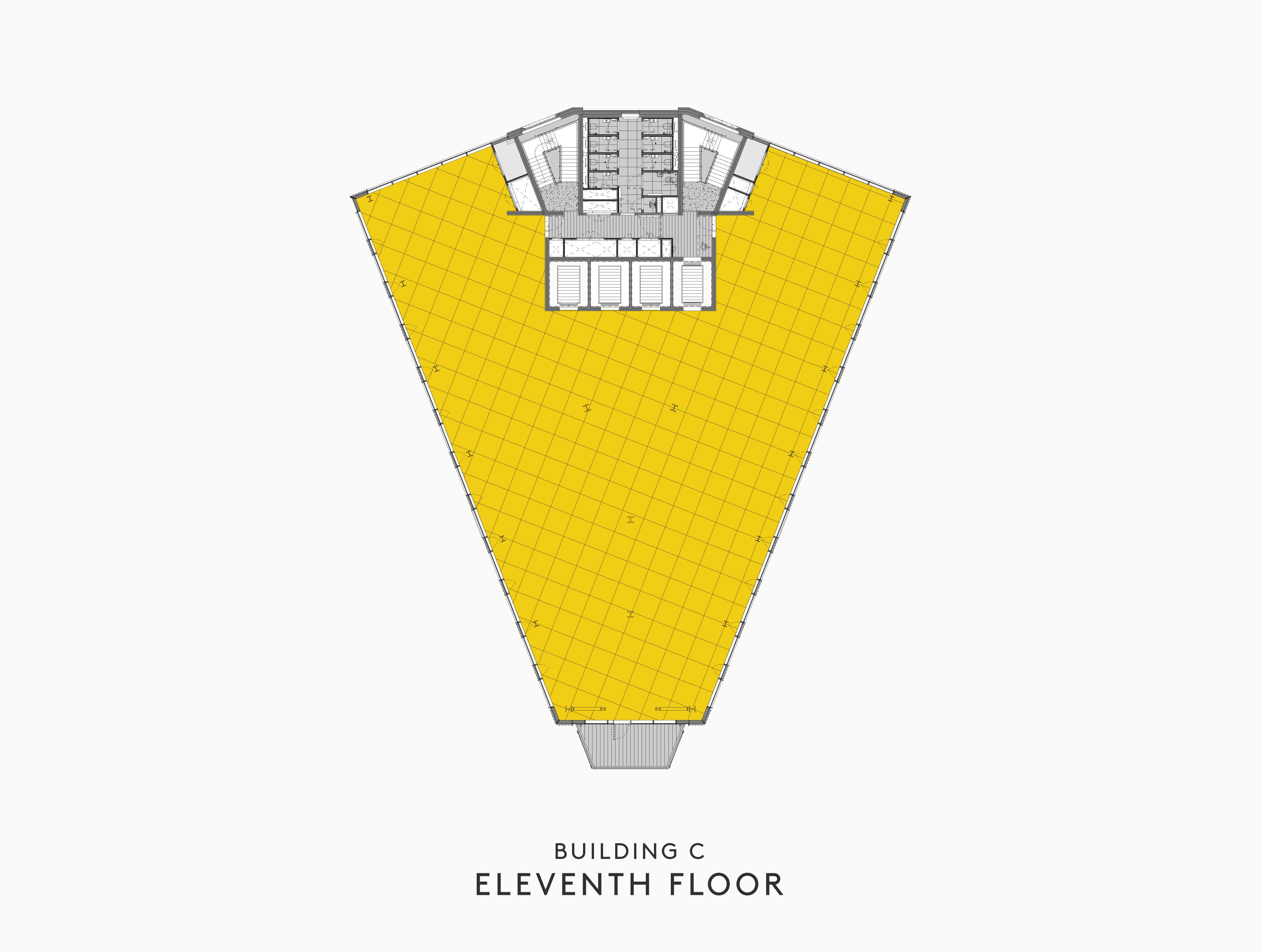

11th floor 7,775 722 167

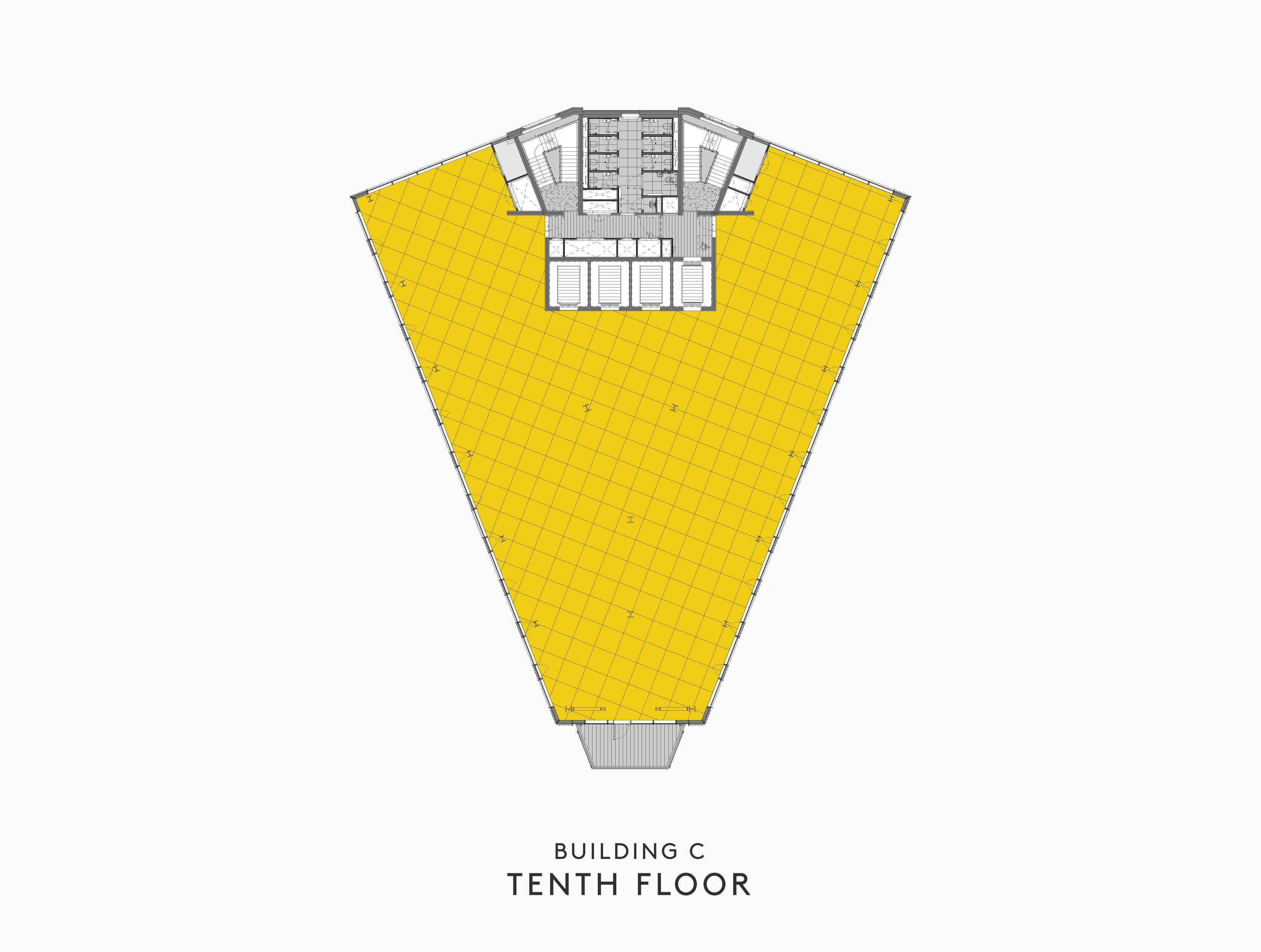

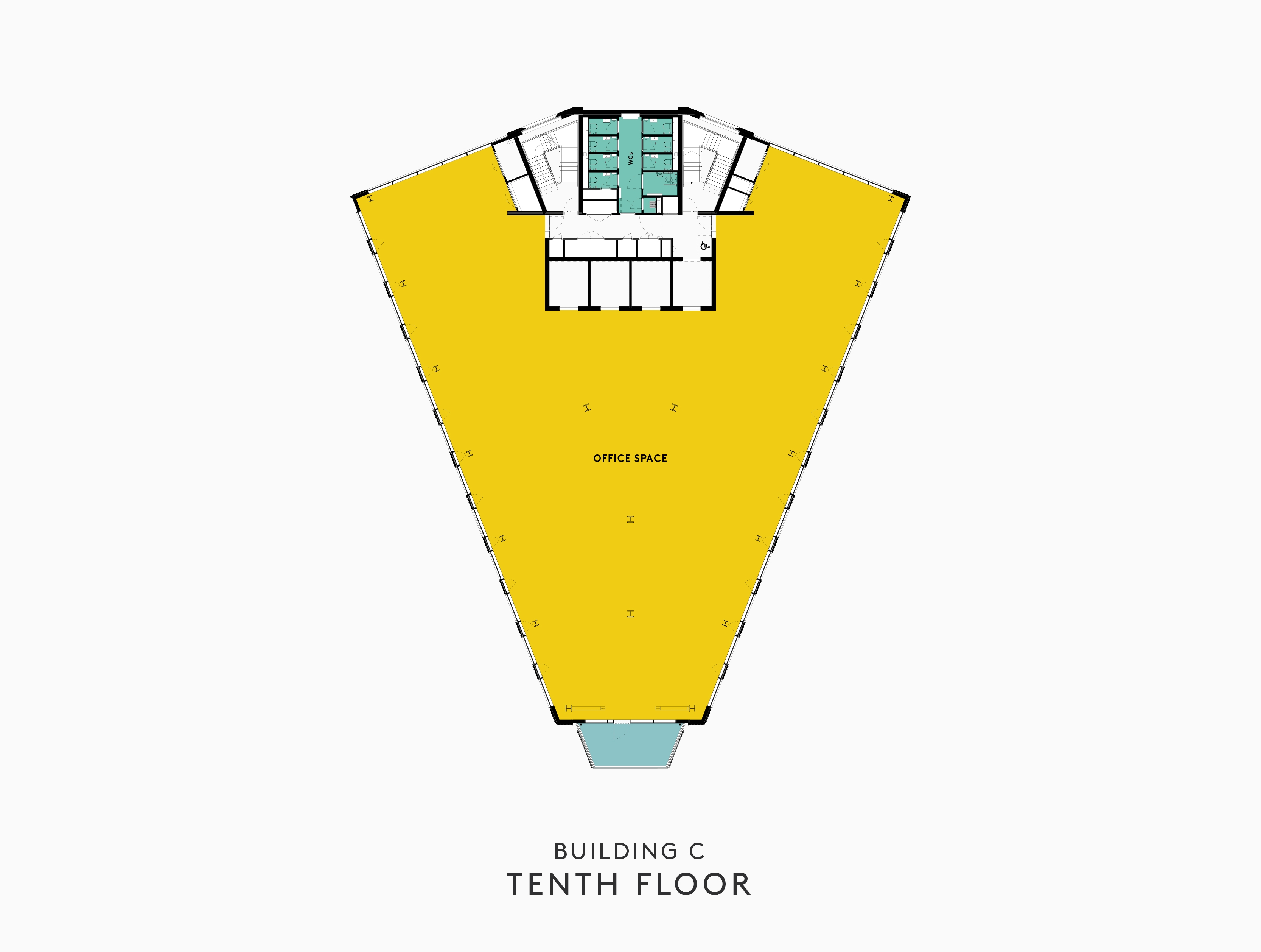

10th floor 7,775 722 167

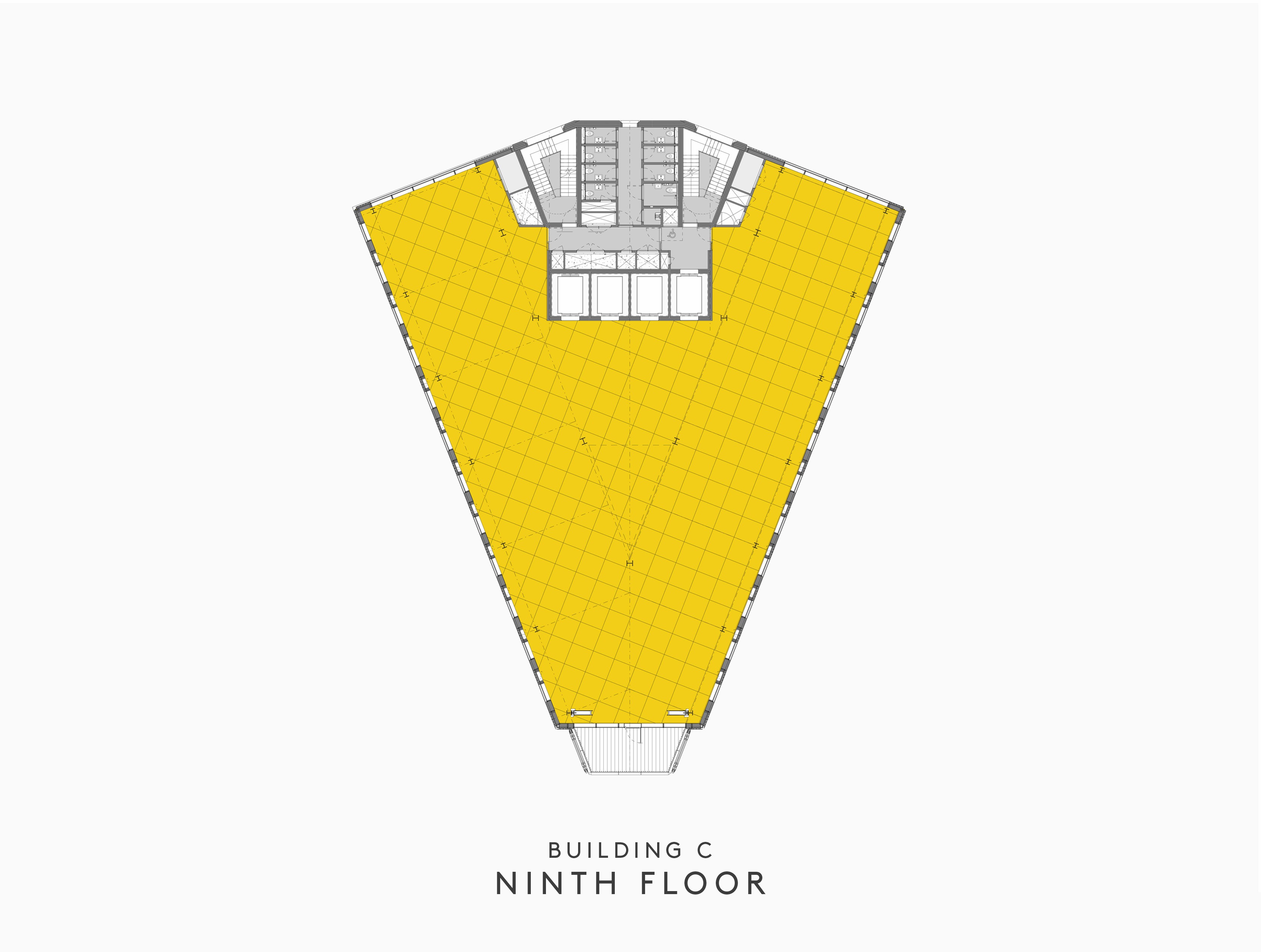

9th floor 7,775 722 167

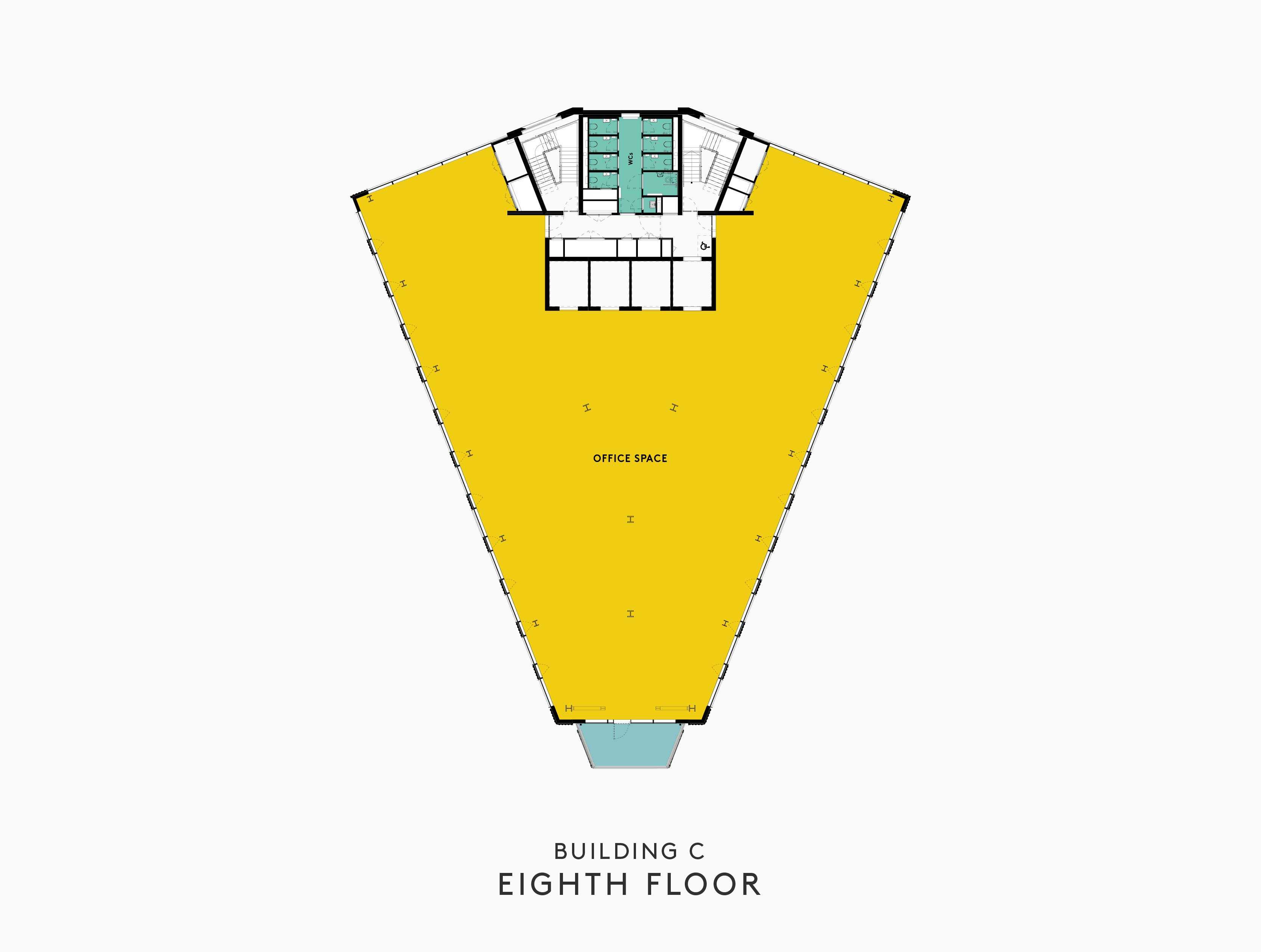

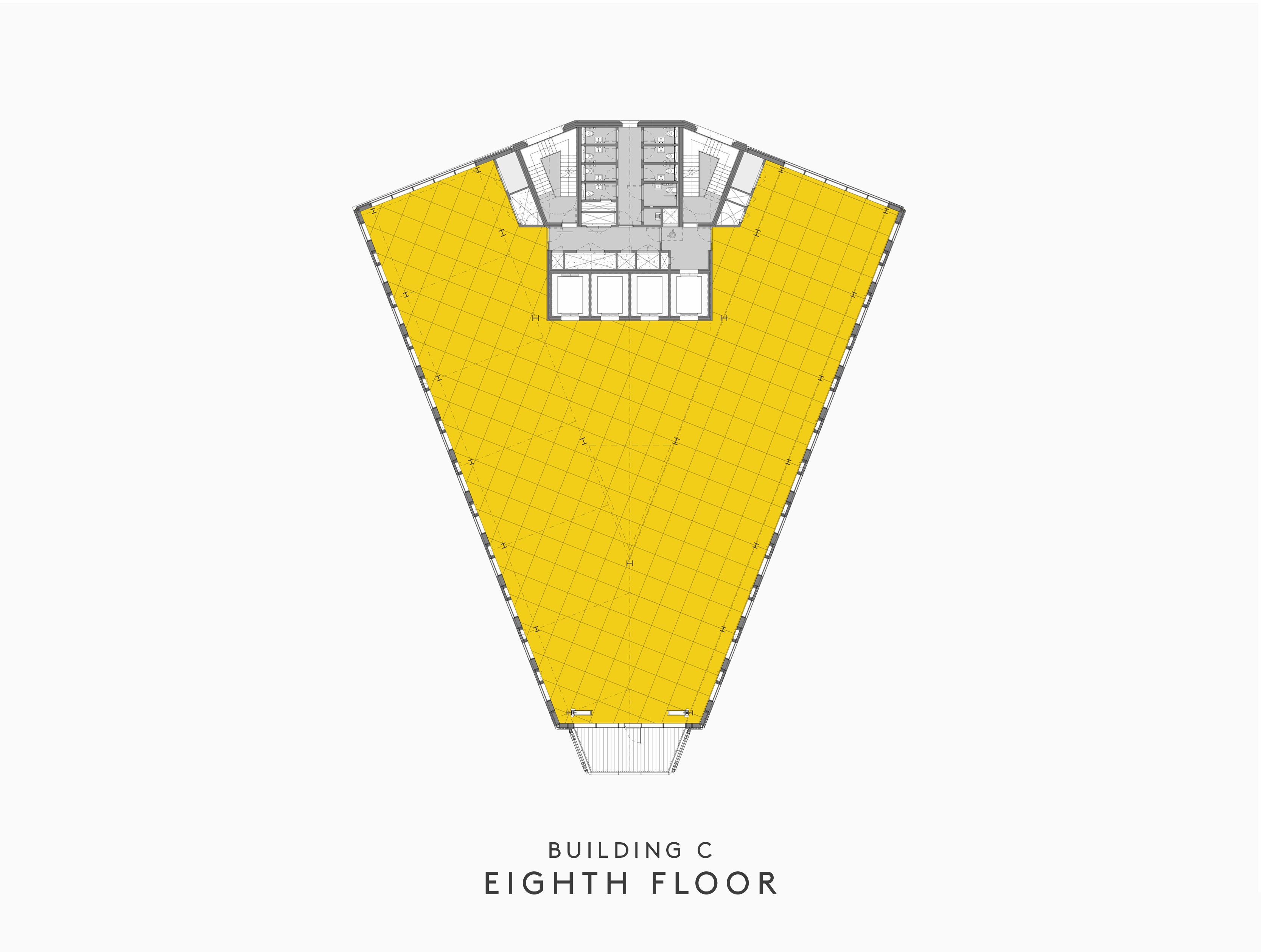

8th floor 7,775 722 167

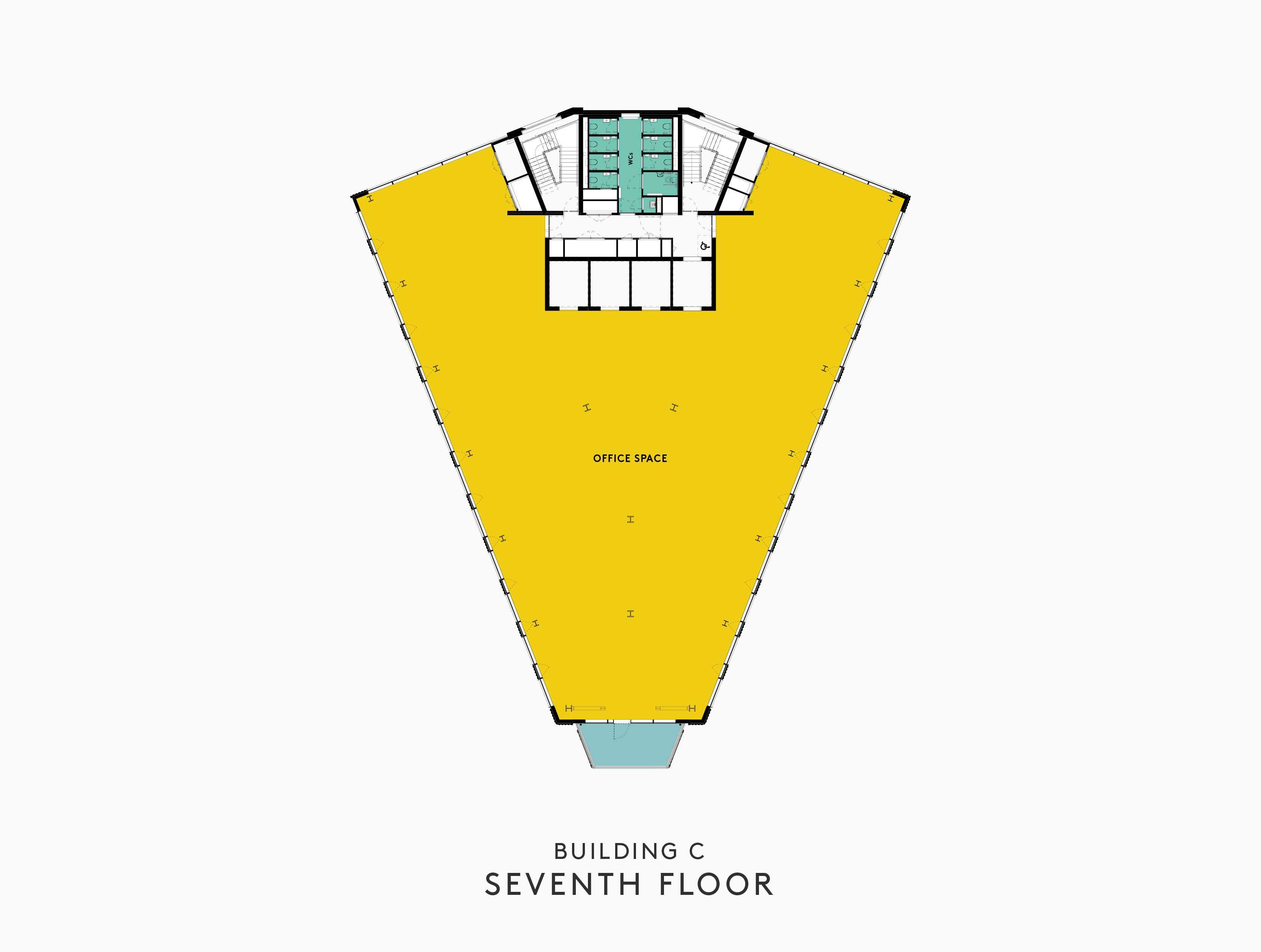

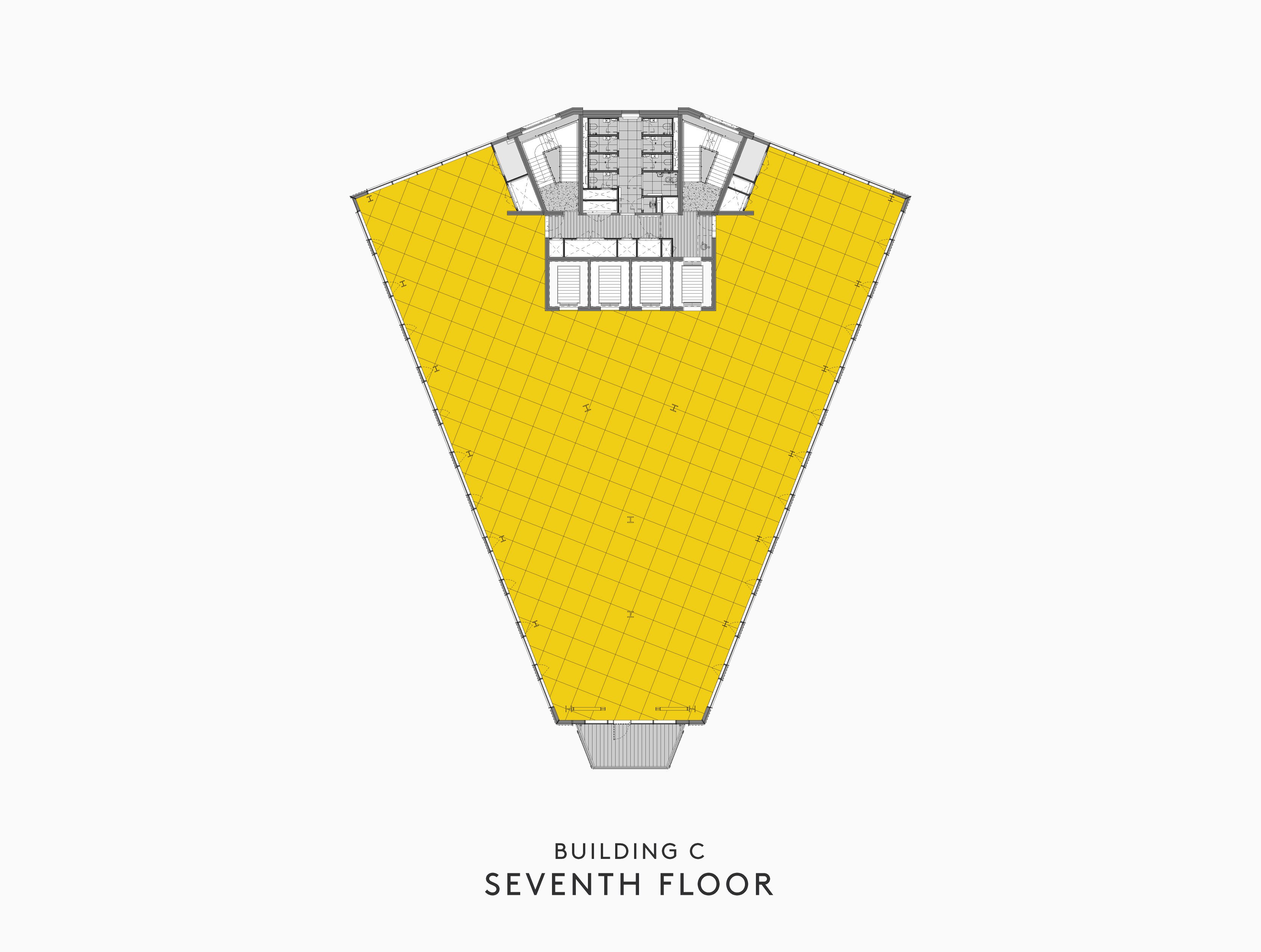

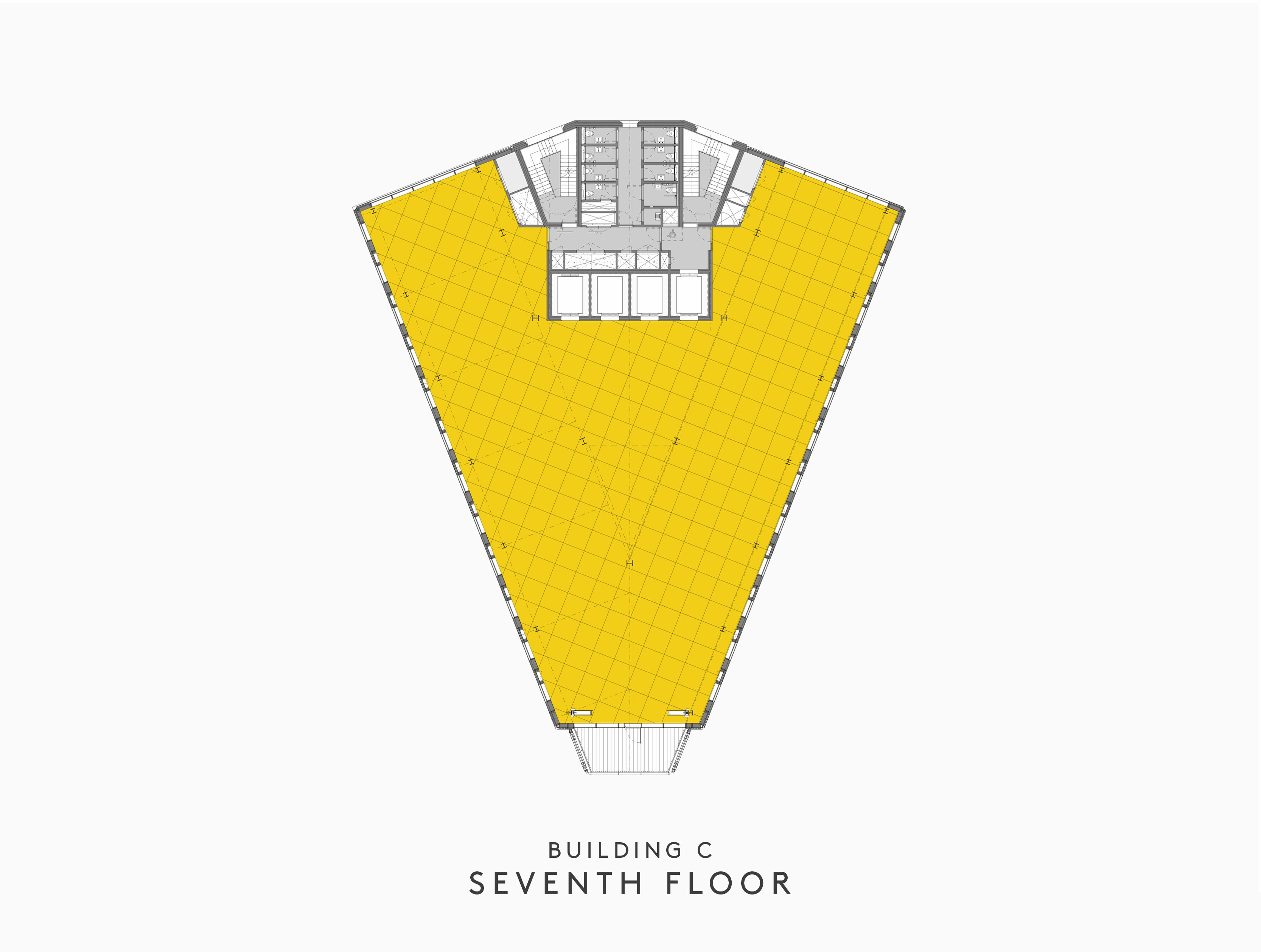

7th floor 7,775 722 167

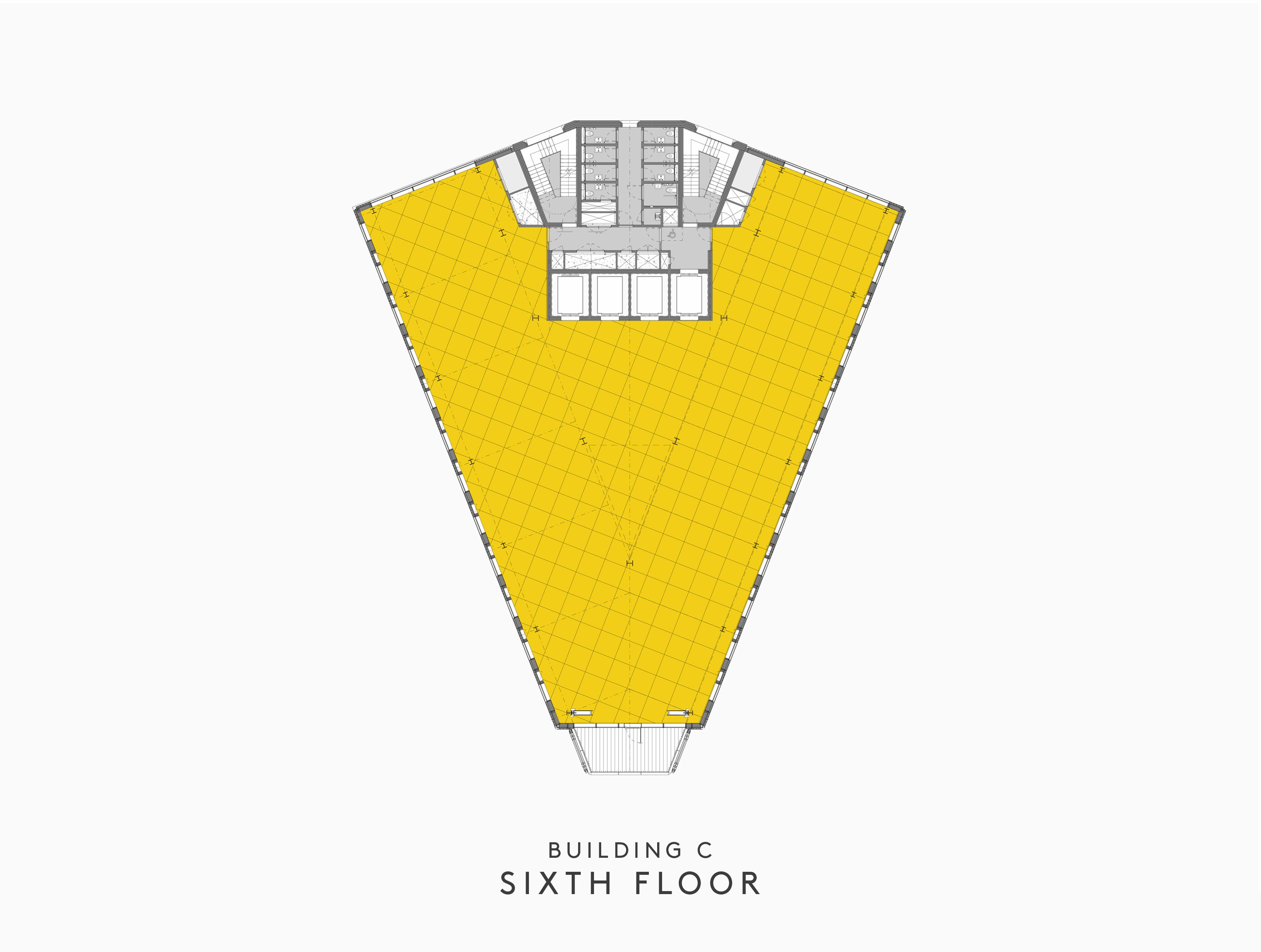

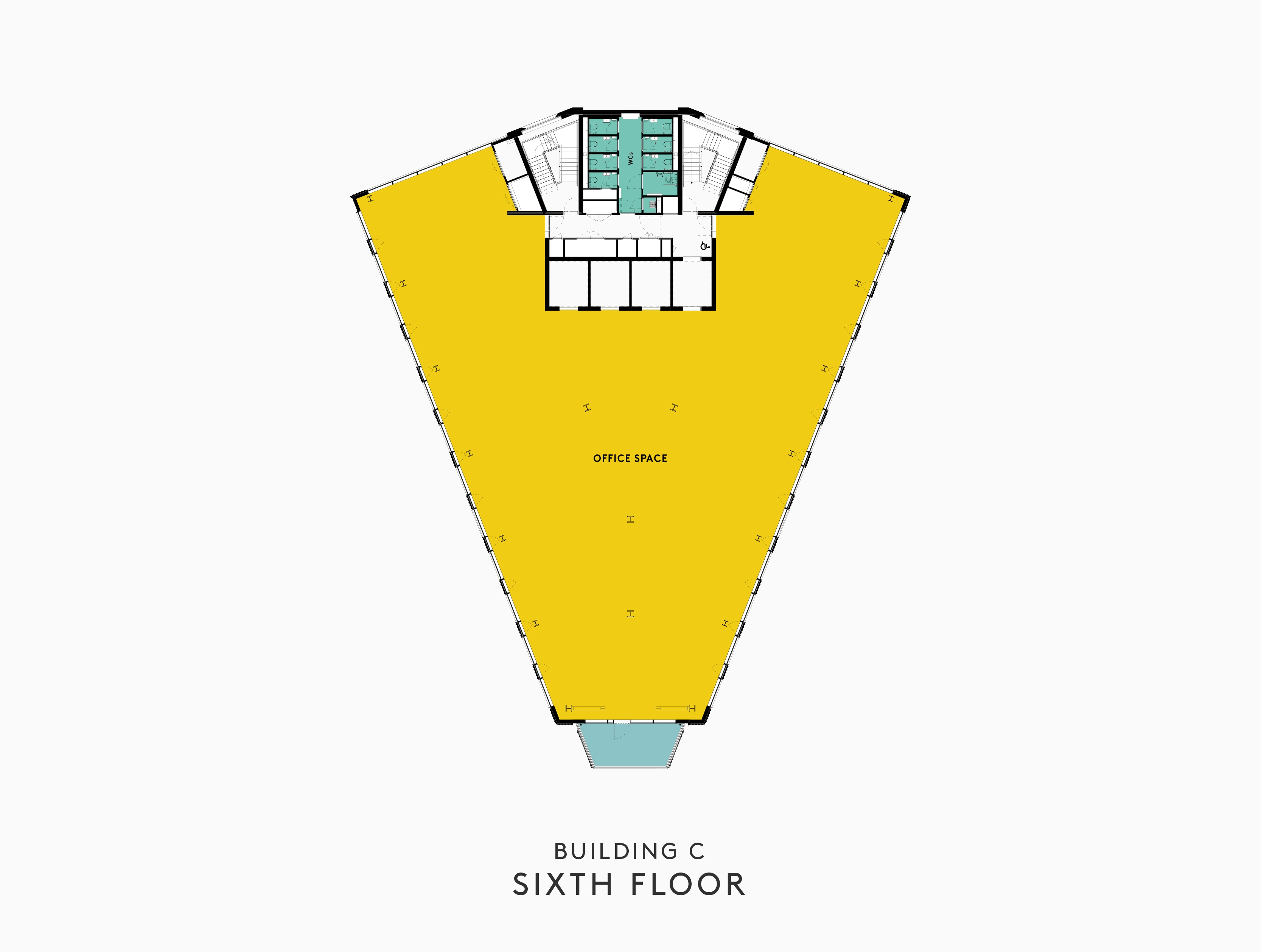

6th floor 7,775 722 167

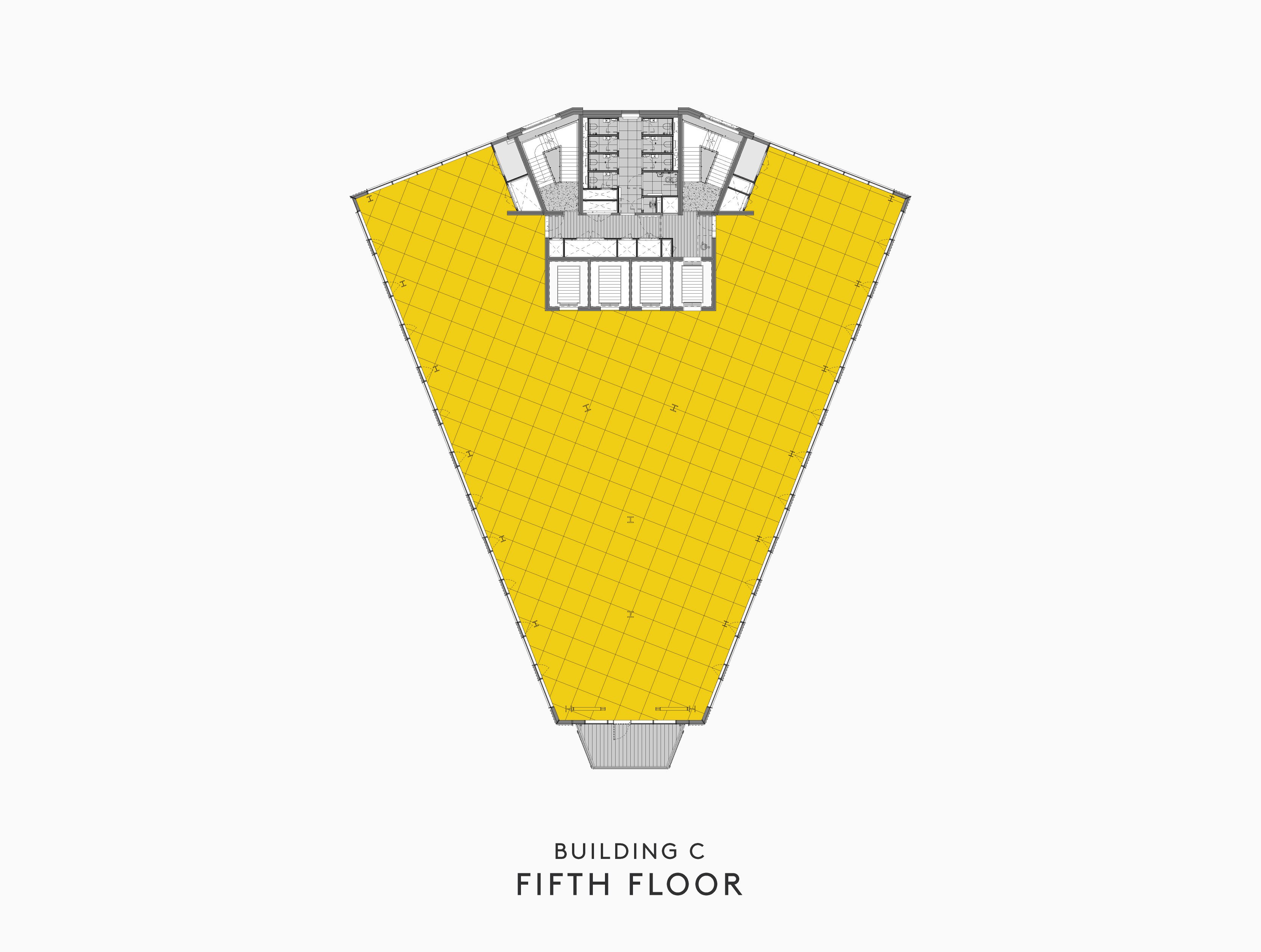

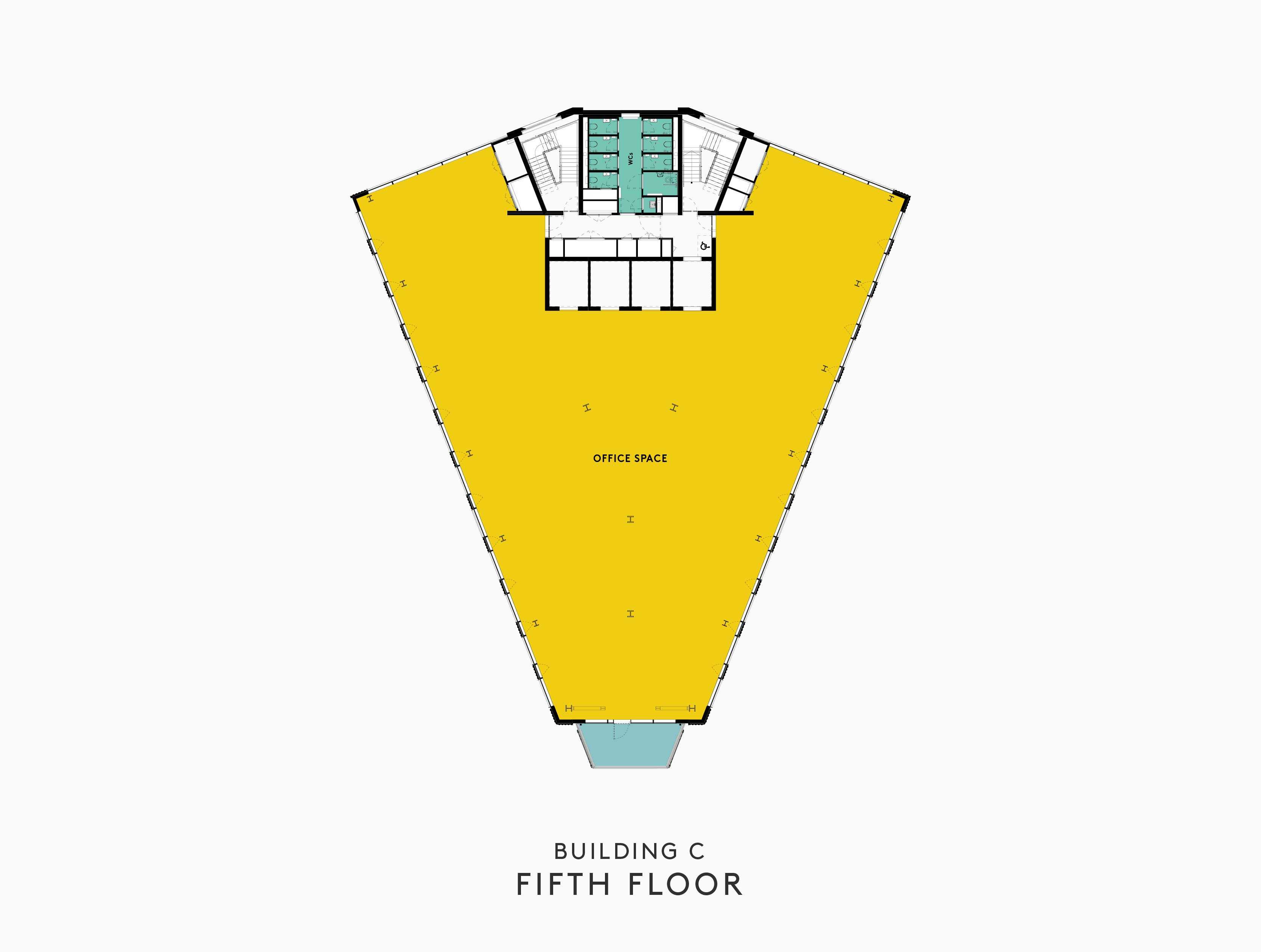

5th floor 7,775 722 167

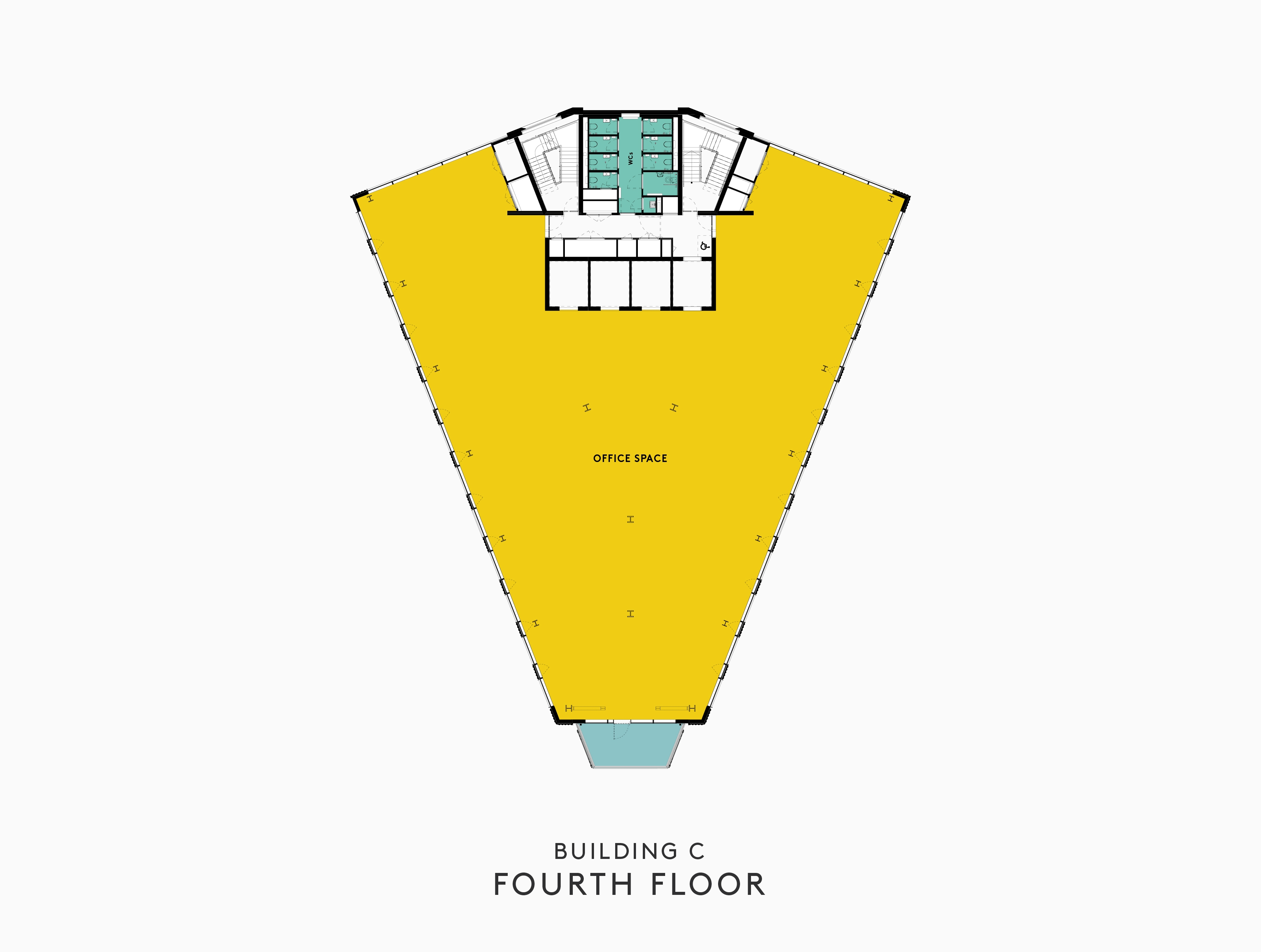

4th floor 7,775 722 167

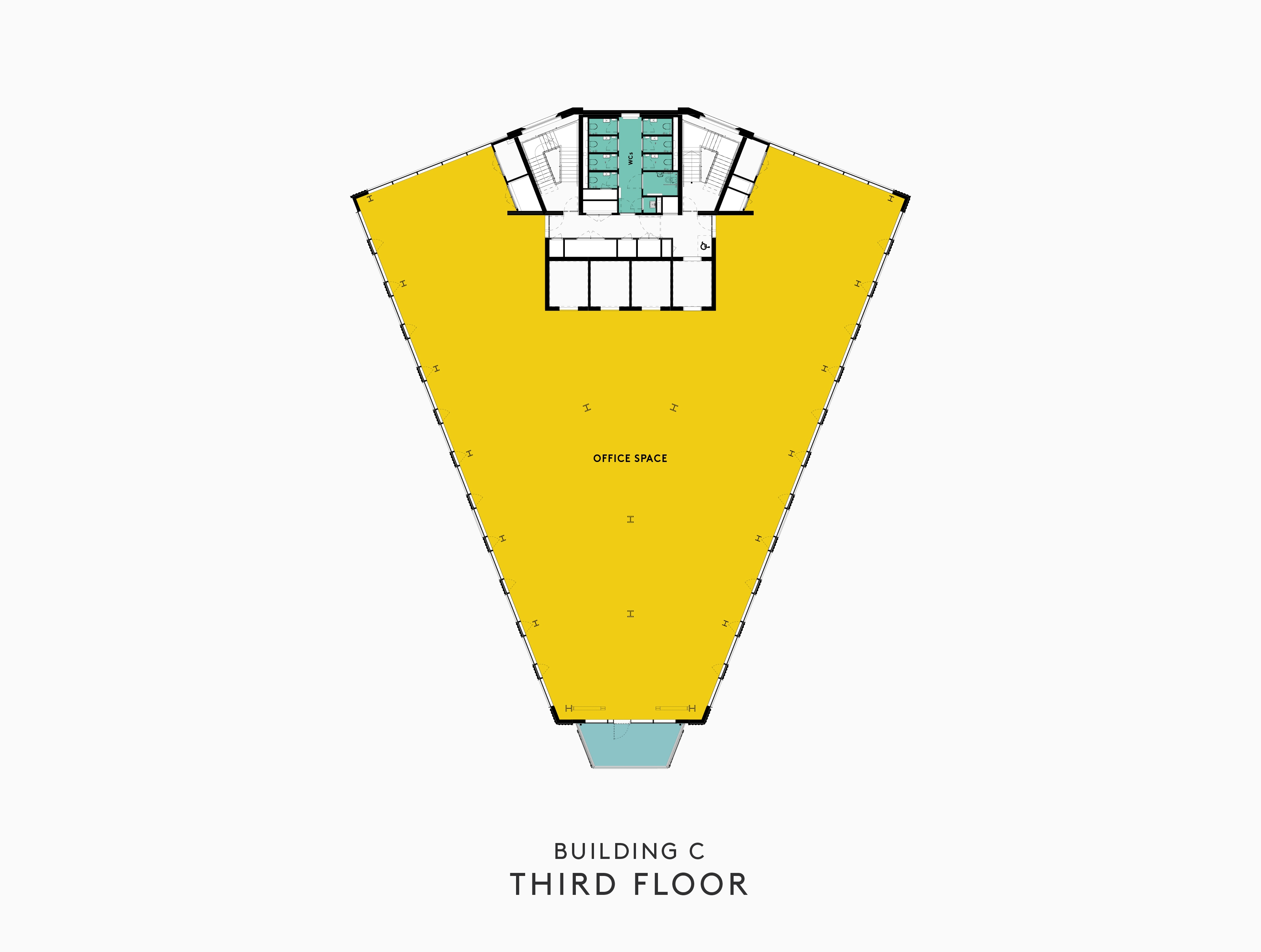

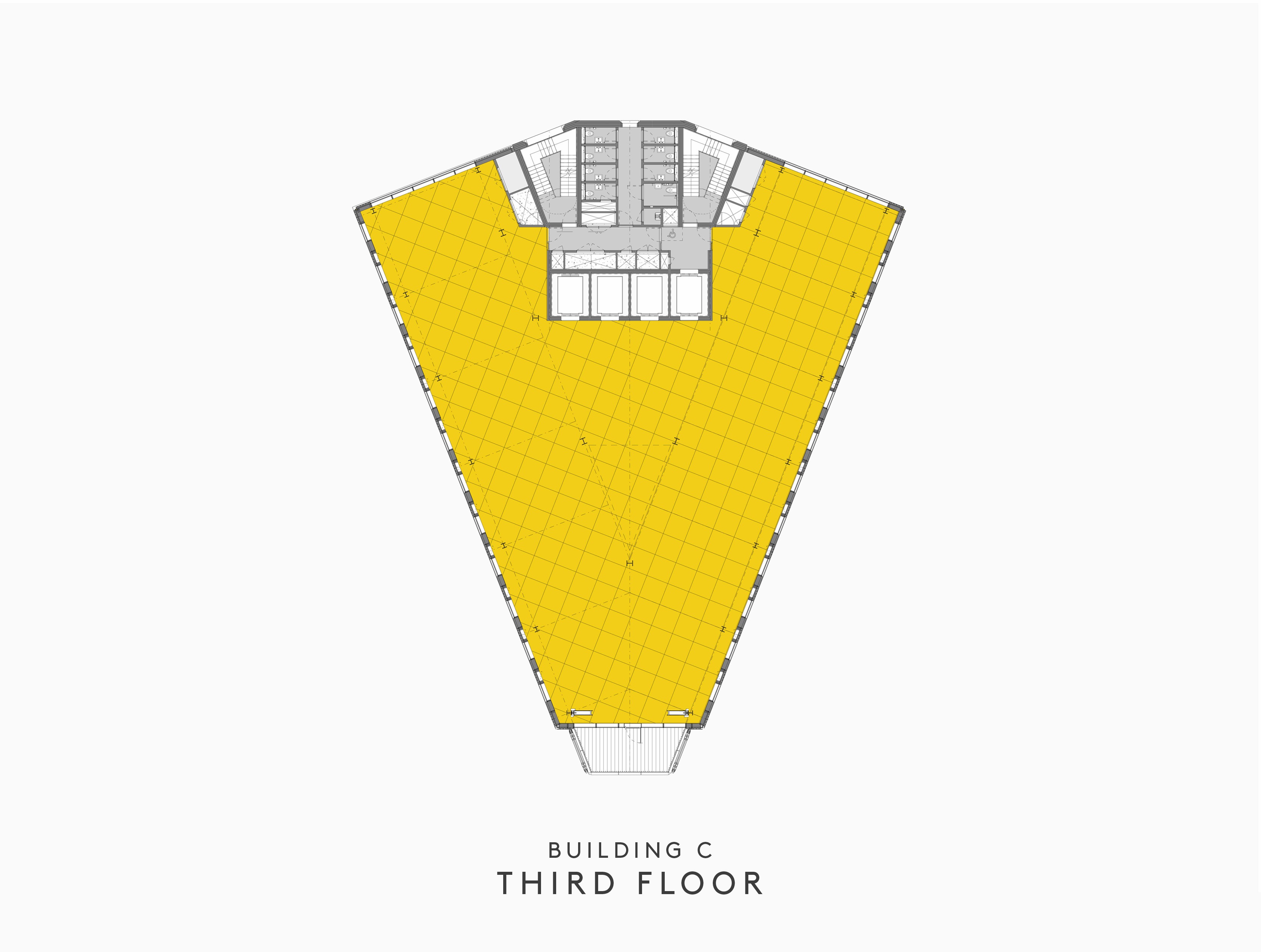

3rd floor 7,775 722 167

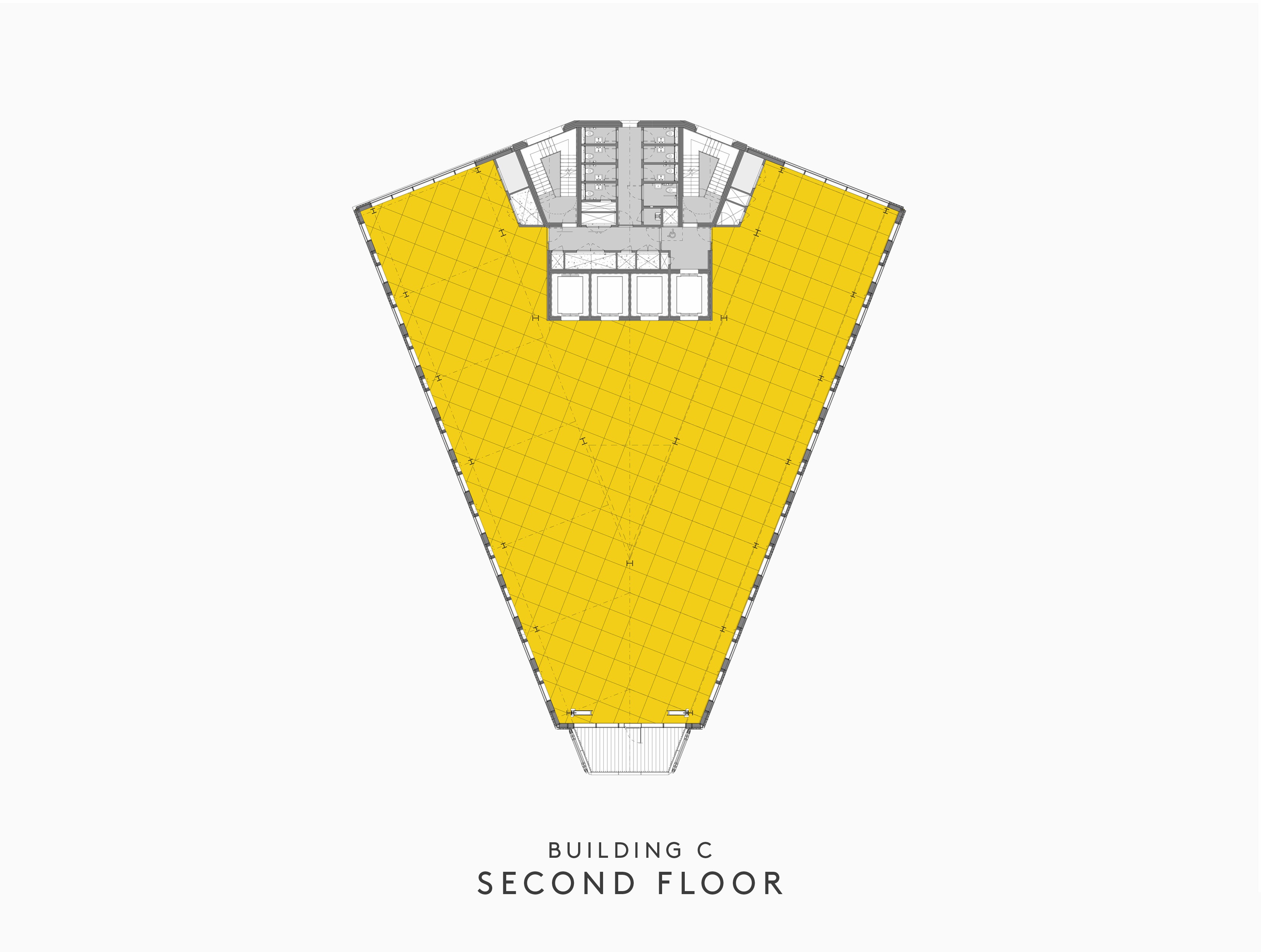

2nd floor 7,775 722 167

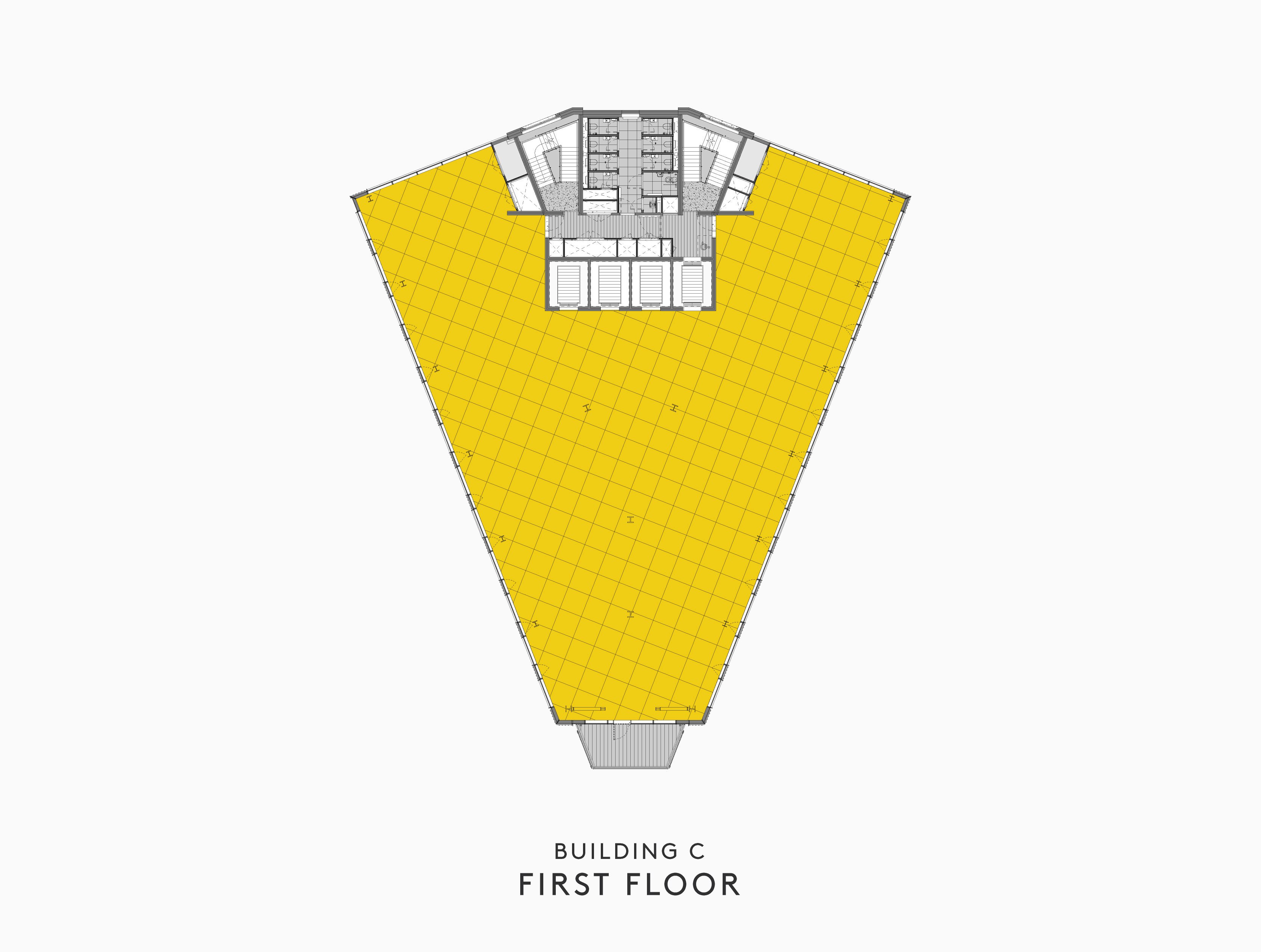

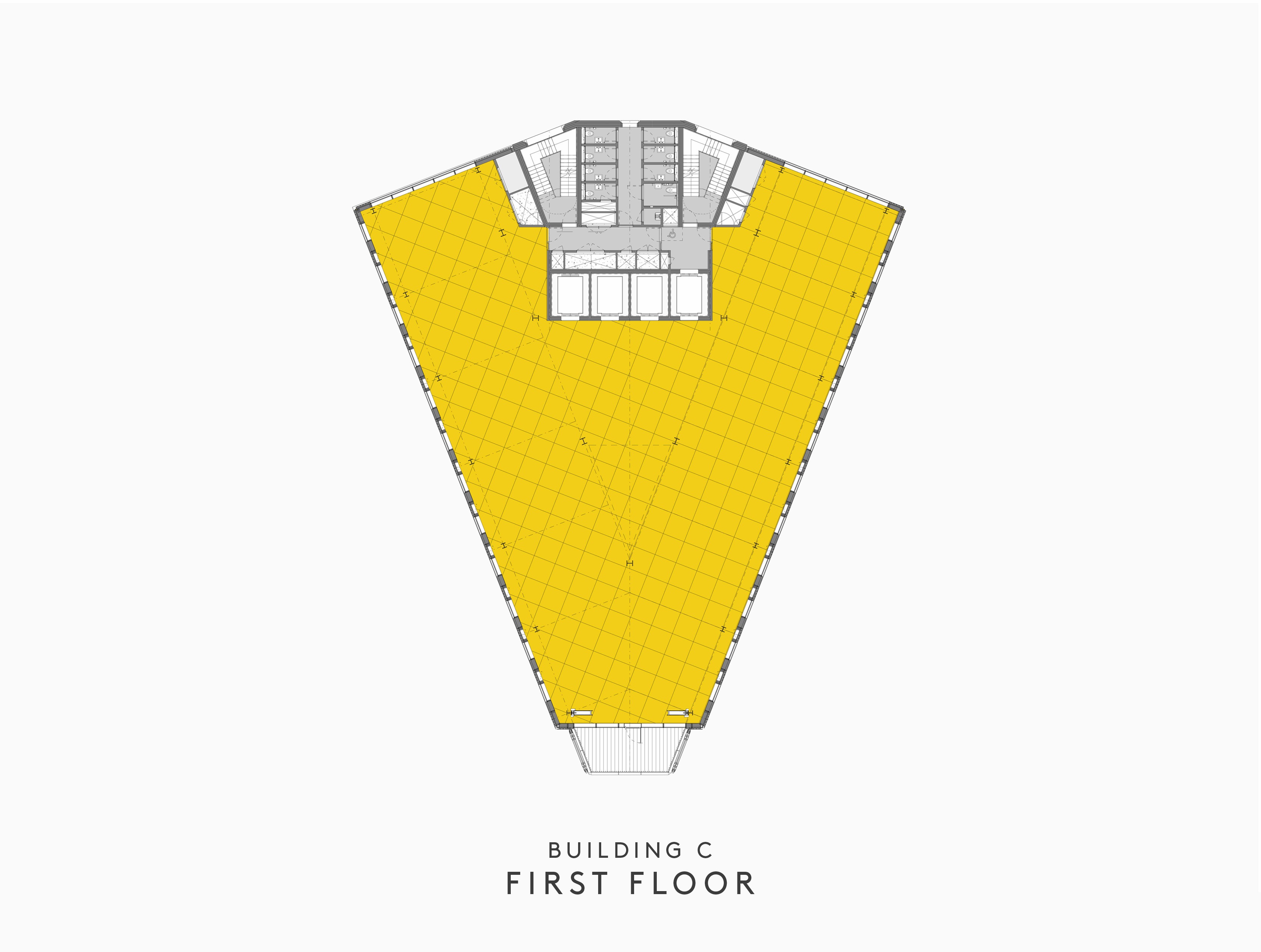

1st floor 7,775 722 167

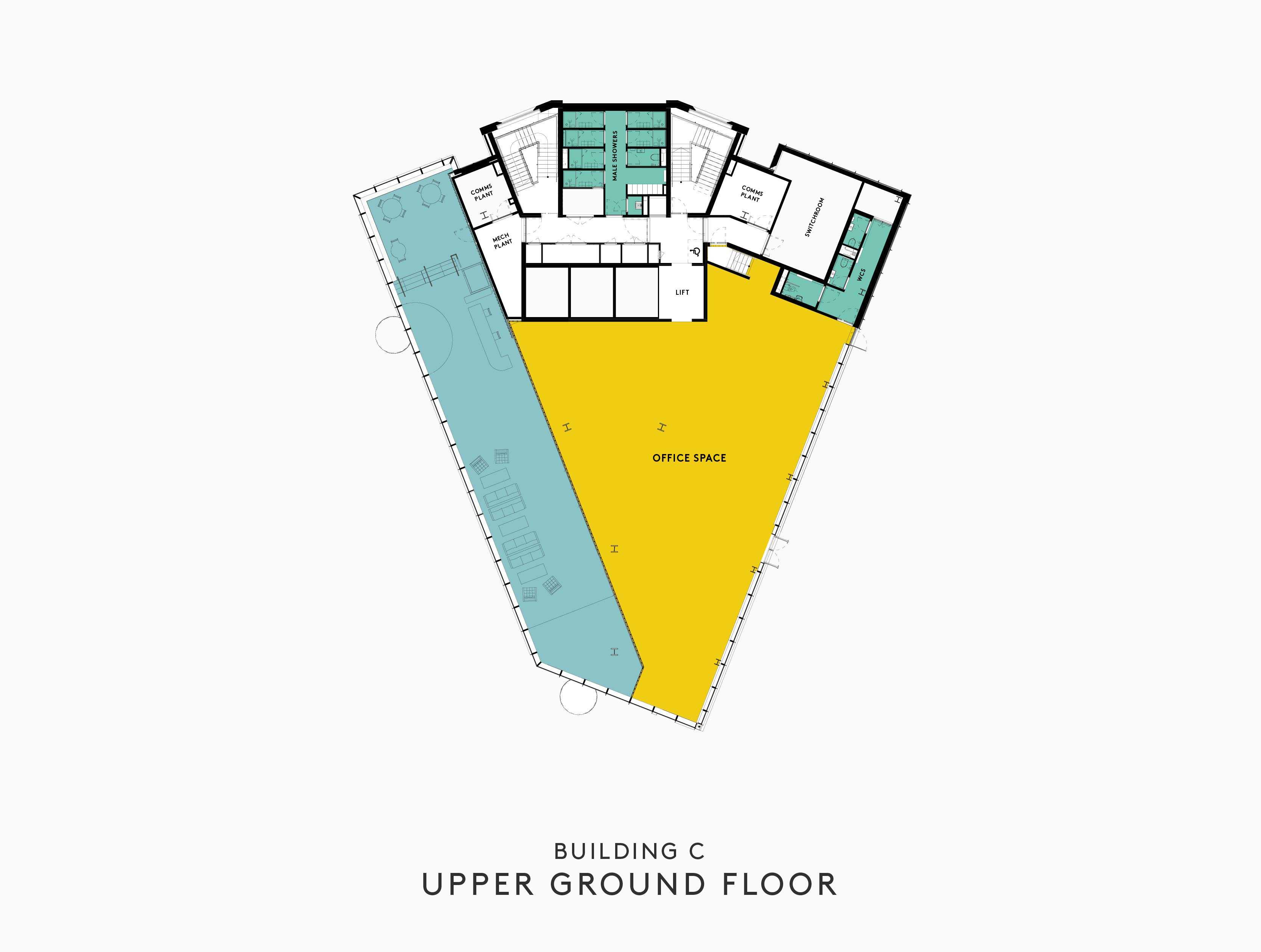

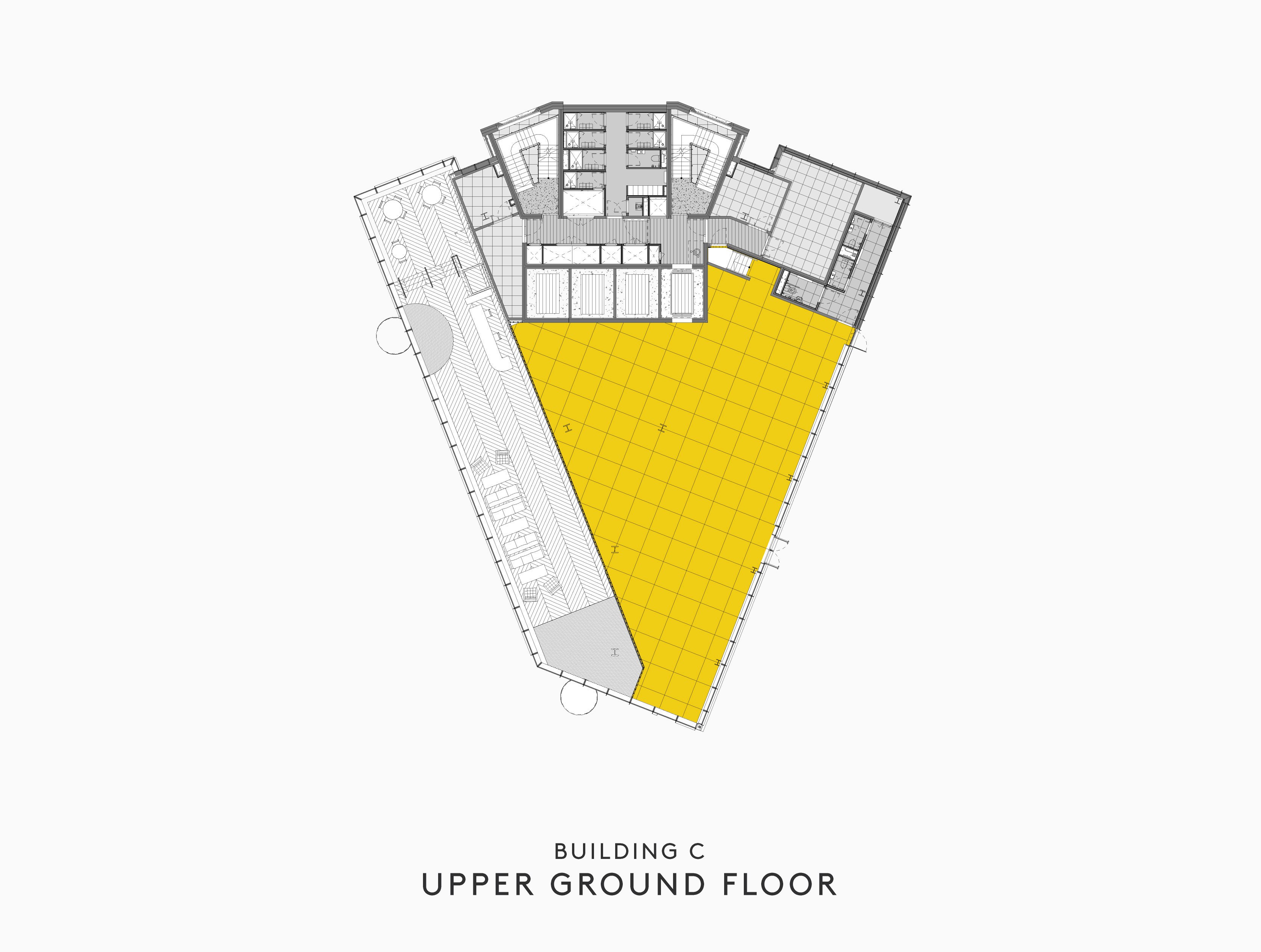

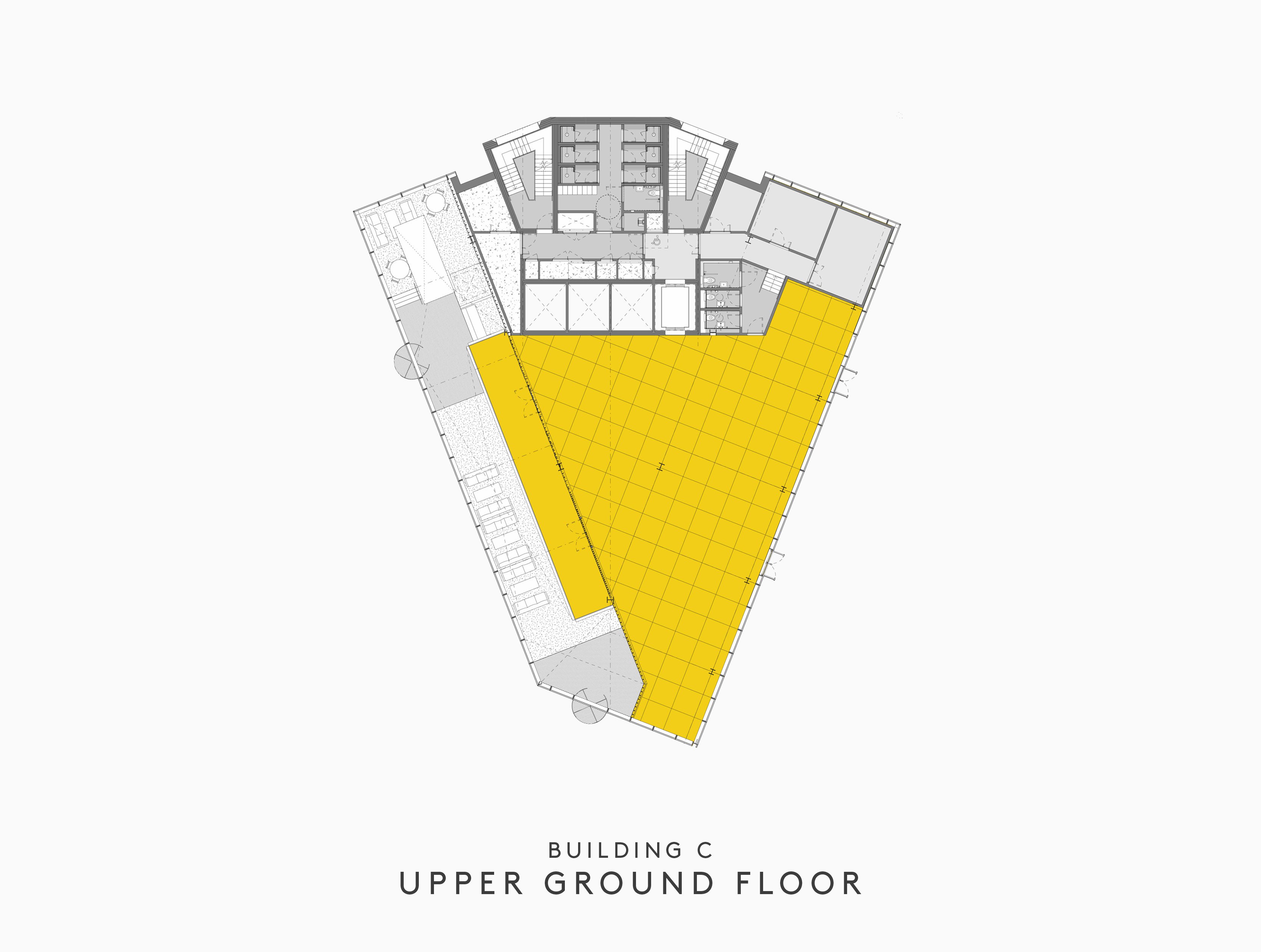

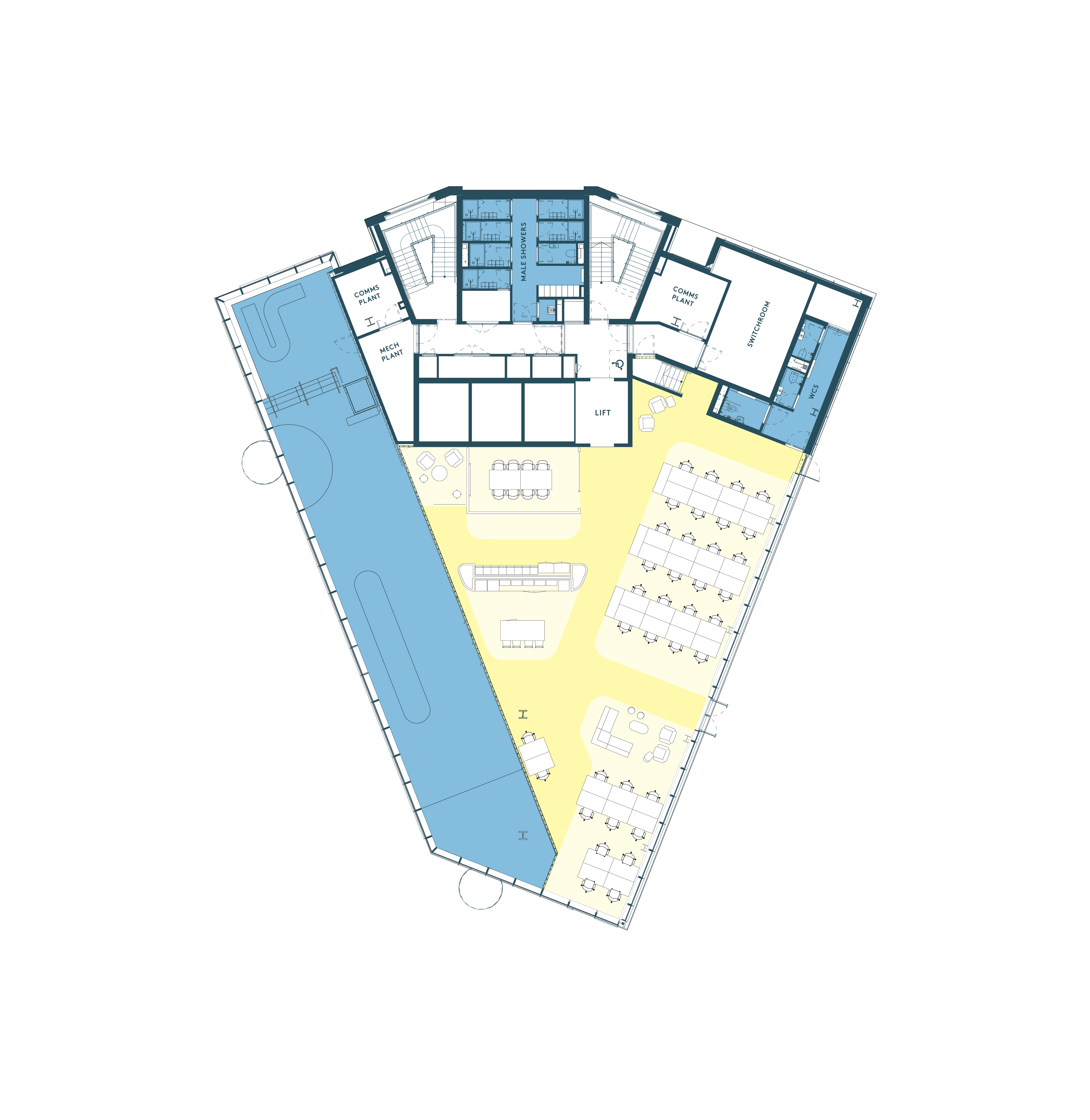

Upper ground 3,668 341 -

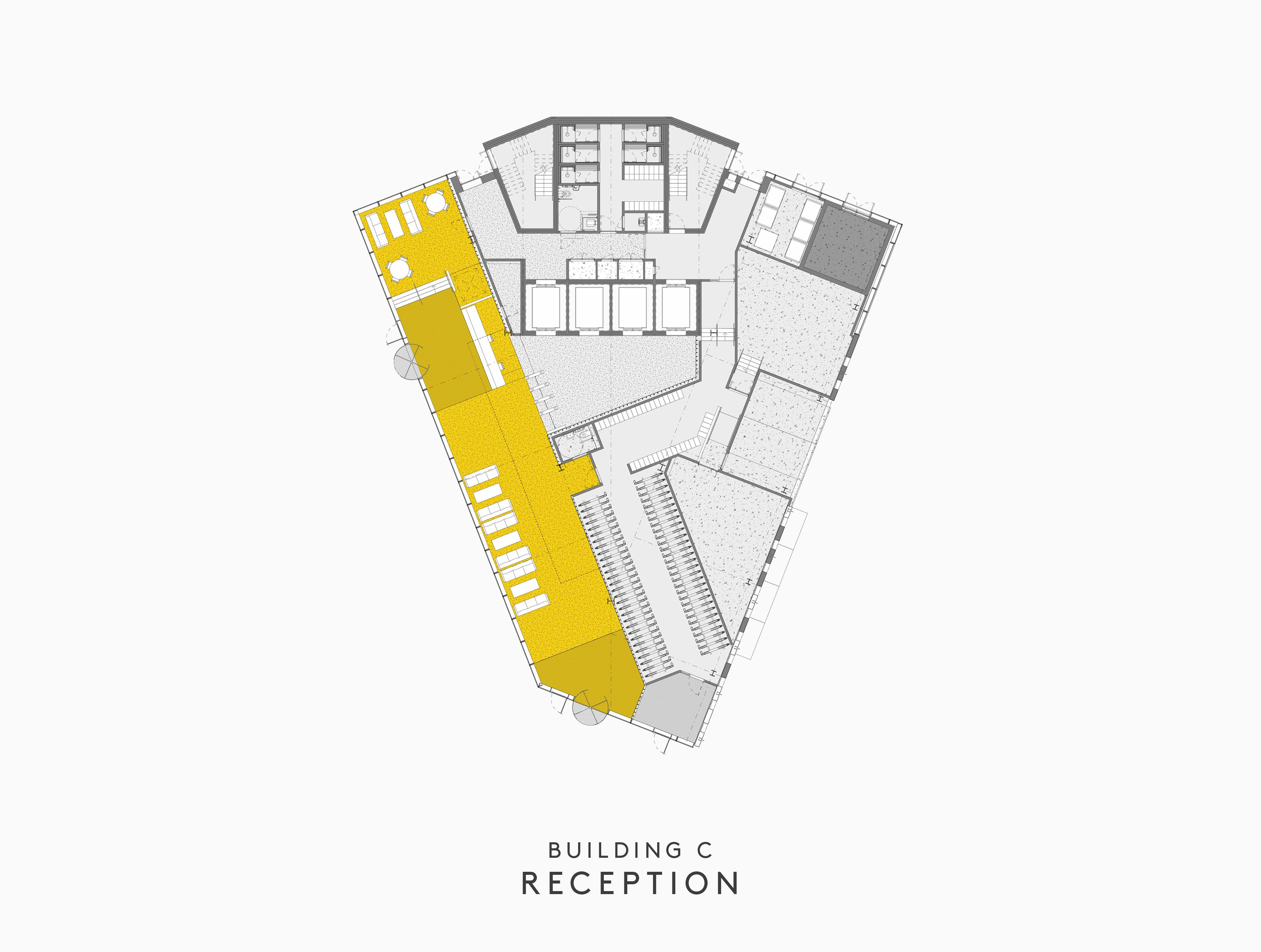

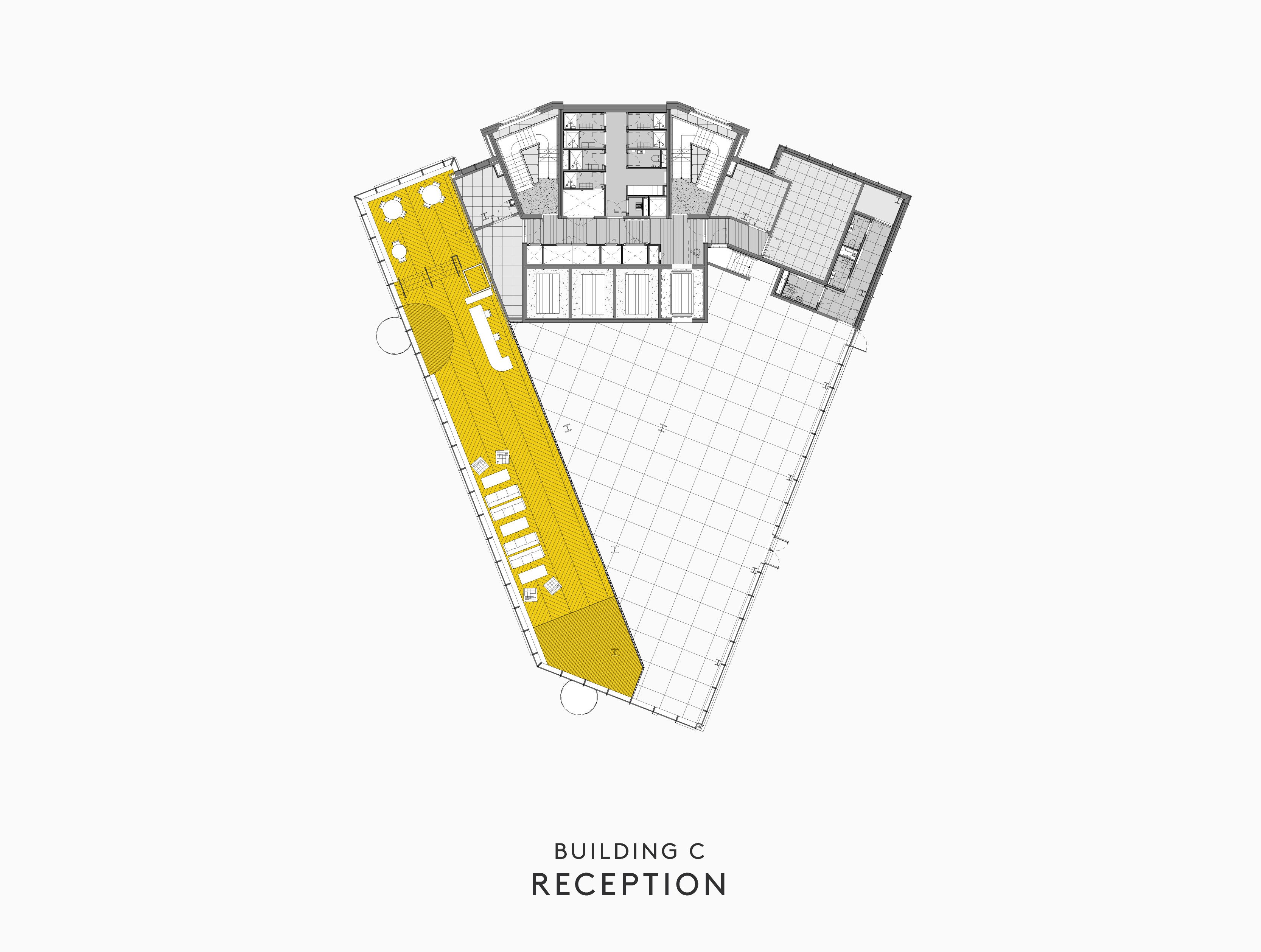

Reception 2,577 239 -
Total 91,770 8,522 7,121
close

Spec - Building B

Occupancy

  • Occupancy density 1:8 sq m

Floors and ceilings

  • 150mm (nominal) raised access floor
  • Typical floors – 2.80m floor to ceiling (if installed), 3.3m floor to soffit

Electrical services

  • LED Lighting: Offices 500 lux (target) at desk level Digital lighting control system
  • Daylight dimming & PIR Control
  • 1 x 13 person passenger lift
  • 1 x 1600kg goods lift, doubles as second passenger lift

WCs and showers

  • Ground floor visitors WC
  • Each floor features WCs and a cleaners' cupboard
  • Shower and changing facilities in a combined “gym” style block on the ground floor

Office performance

  • VRF air conditioning system
  • Fresh air provided by centralised rooftop air handling units with thermal recovery
  • Cladding designed to enable future retrofit of openable window panels for natural ventilation

Parking spaces and access

  • 36 staff cycle spaces in a covered external enclosure

Landscaping

  • Extensive waterside public realm and new high quality estate landscaping
close

Spec - Building C

Occupancy

  • Occupancy density 1:8 sq m

Floors and ceilings

  • 150mm (nominal) raised access floor
  • Typical floors – 3.00m floor to ceiling (if installed), 3.55m floor to soffit

Electrical services

  • LED Lighting: Offices 500 lux (target) at desk level Digital lighting control system
  • Daylight dimming & PIR Control
  • 4 x 21 person passenger lifts; of which 1 x lift doubles as firefighting lift of which 1 x lift doubles as 1600kg goods lift

WCs and showers

  • Ground floor visitors WC
  • Each floor features WCs and a cleaners' cupboard
  • Shower and changing facilities in a combined “gym” style block on the lower and upper ground floors

Office performance

  • VRF air conditioning system
  • Fresh air provided by on-floor air handling units with thermal recovery
  • Cladding designed to enable future retrofit of openable window panels for natural ventilation

Parking spaces and access

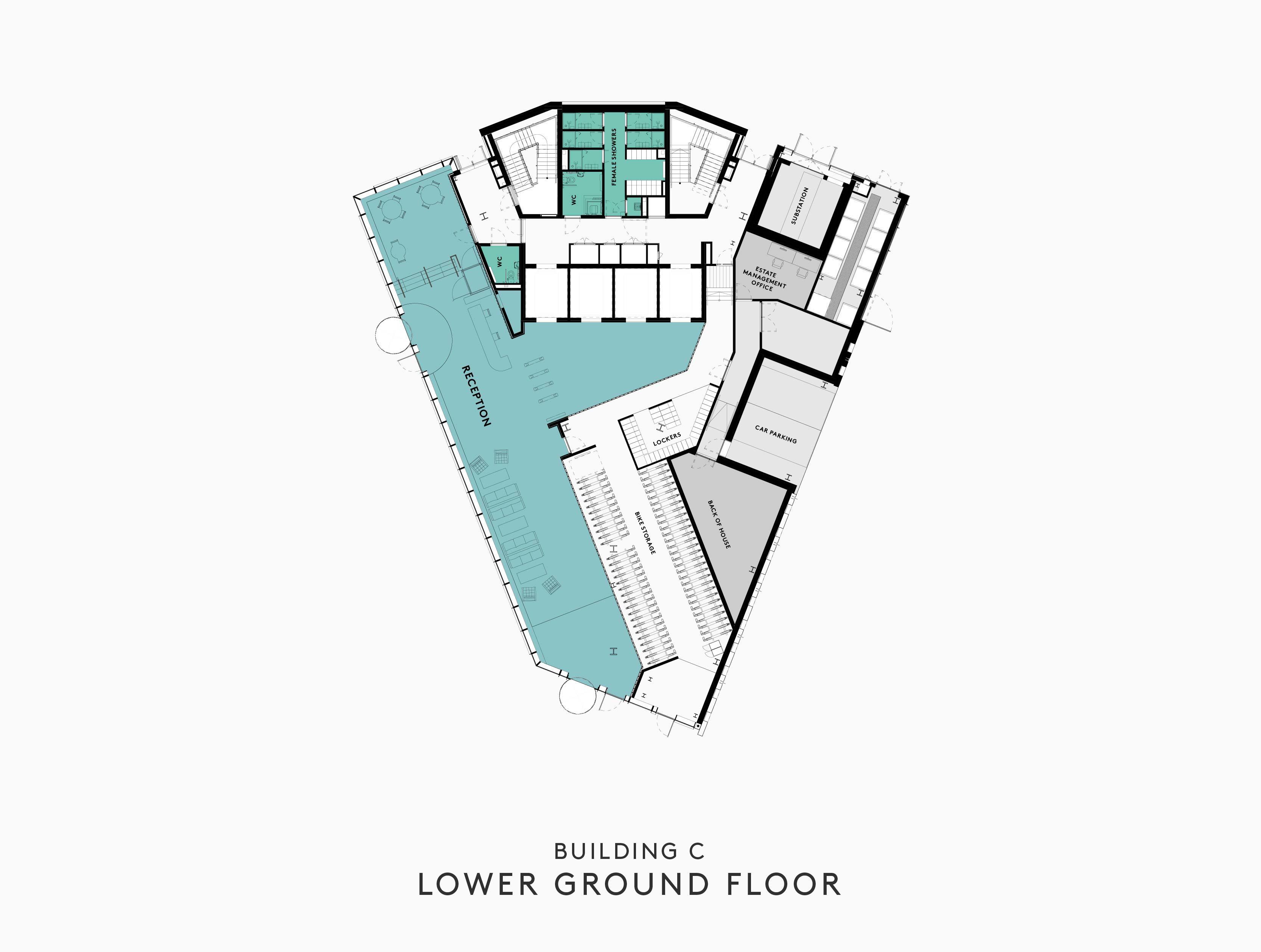

  • Up to 3 car parking spaces are provided on lower ground floor
  • Electric car spaces and charging points
  • 116 cycle spaces

Landscaping

  • Extensive waterside public realm and new high quality estate landscaping; landscaped roof terrace

Balconies & terraces

  • Private per tenancy balconies are provided on most floors, on the south elevation.

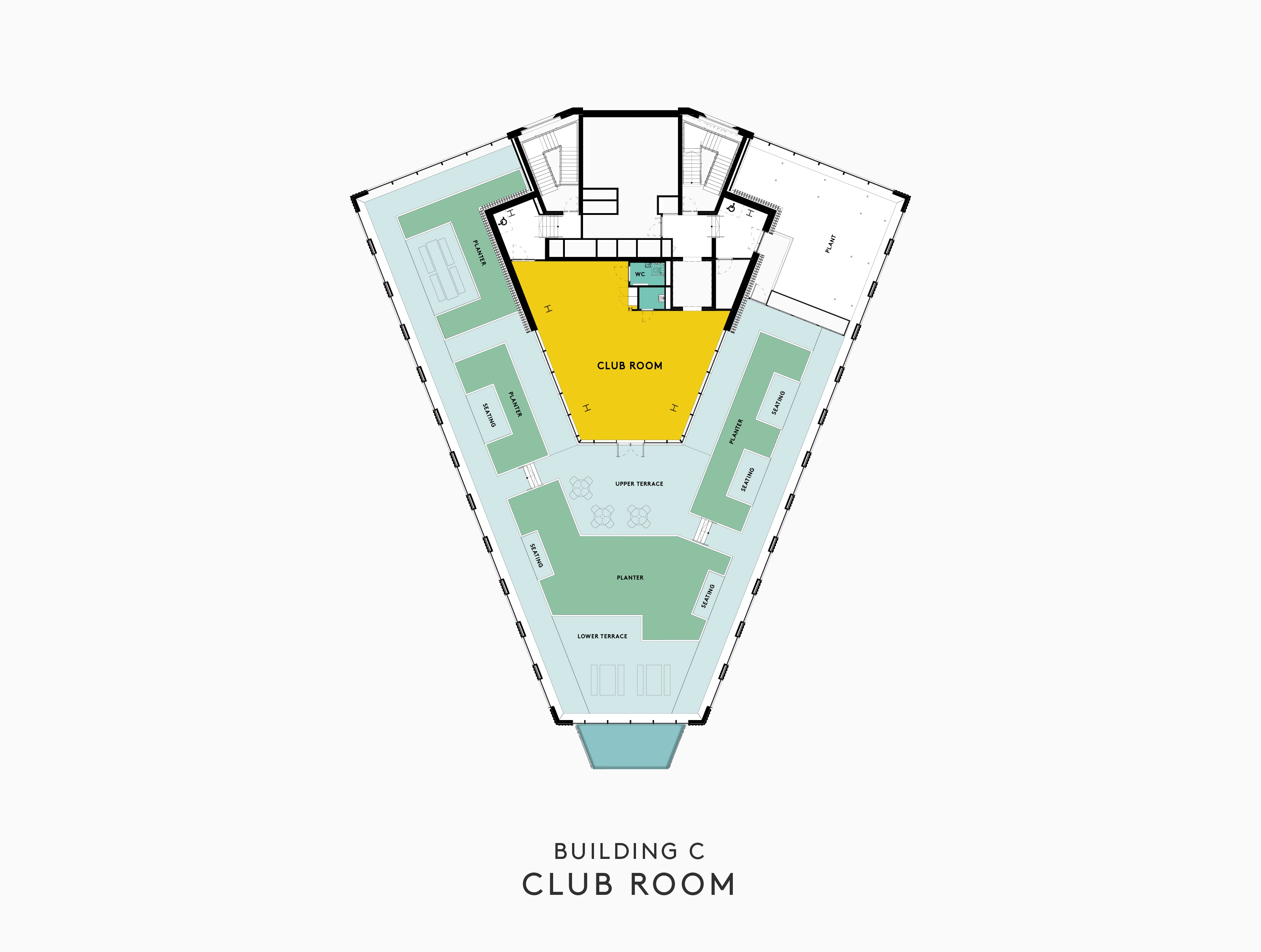

  • A landscaped terrace shared by all occupants is located at roof level
